DSL-N10 Chapter 4: Conguring via the web GUI
4
Conguring via
the web GUI
Conguring via the web GUI
The router’s web Graphical User Interface (web GUI) allows you to congure these
features: Network Map, Quick Internet Setup, EZQoS Bandwidth Management
and other Advanced Setting.

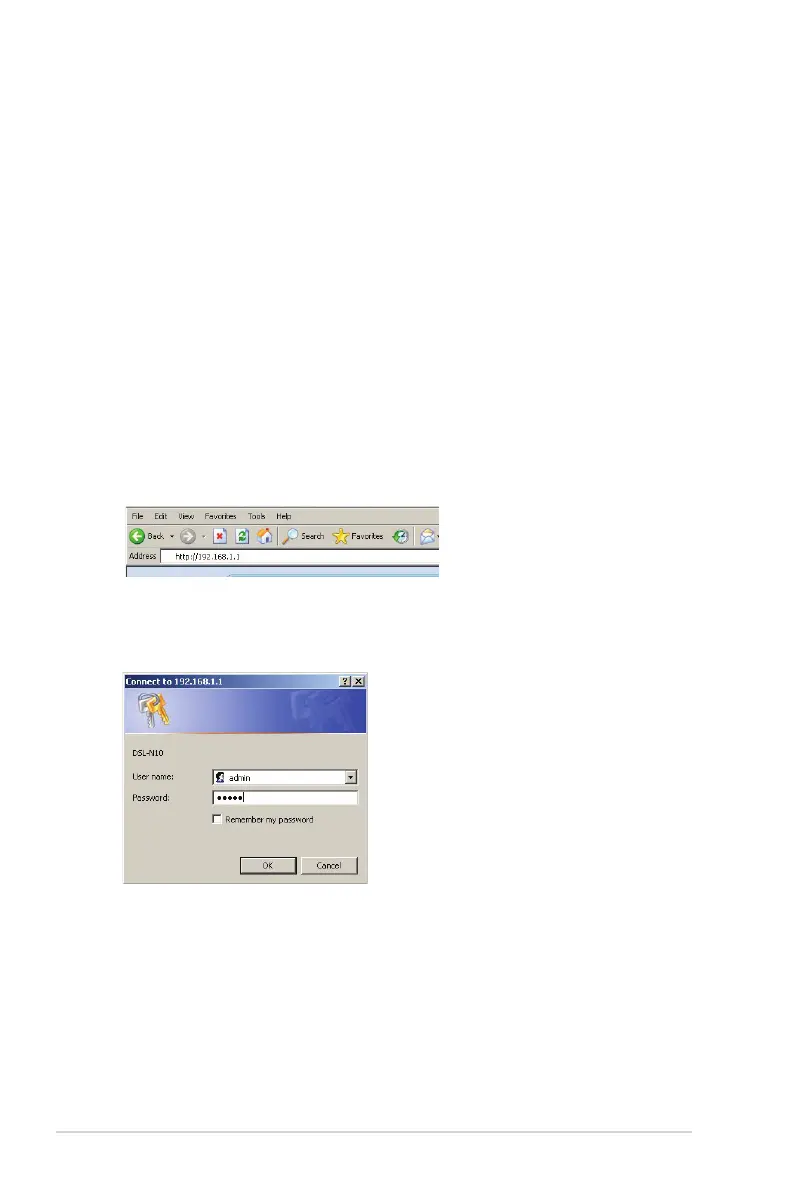

To access the web GUI:
1. Launch a web browser, then key in the router’s IP address (192.168.1.1). The
login page of the router’s web GUI appears.
2. On the login page, key in the default user name (admin) and password
(admin).

Asus DSL-N10 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	-95dBm@1Mbps, -92dBm@11Mbps, -75dBm@54Mbps, -72dBm@72.2Mbps, -68dBm@150Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Bandwidth	2.4 GHz
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Dimensions (WxDxH)	164 x 116.5 x 31 mm
Power requirements	DC 12 V/1 A
Channels quantity	13 channels
DSL specification	ADSL 2/2+
DHCP client	-
Transmit power	17 dBmW
Antennas quantity	1
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication method	Radius
Flash memory	1 MB
Certification	CE, FCC, A-Tick, IC, CT
Internal memory	2 MB
Power consumption (typical)	12 W
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Product color	Black
LED indicators	DSL, LAN, Power, Status, WLAN

Weight and Dimensions

Weight	255 g
