Asus DSL-N10 User Manual

25
Chapter 4: Conguring via the web GUI DSL-N10

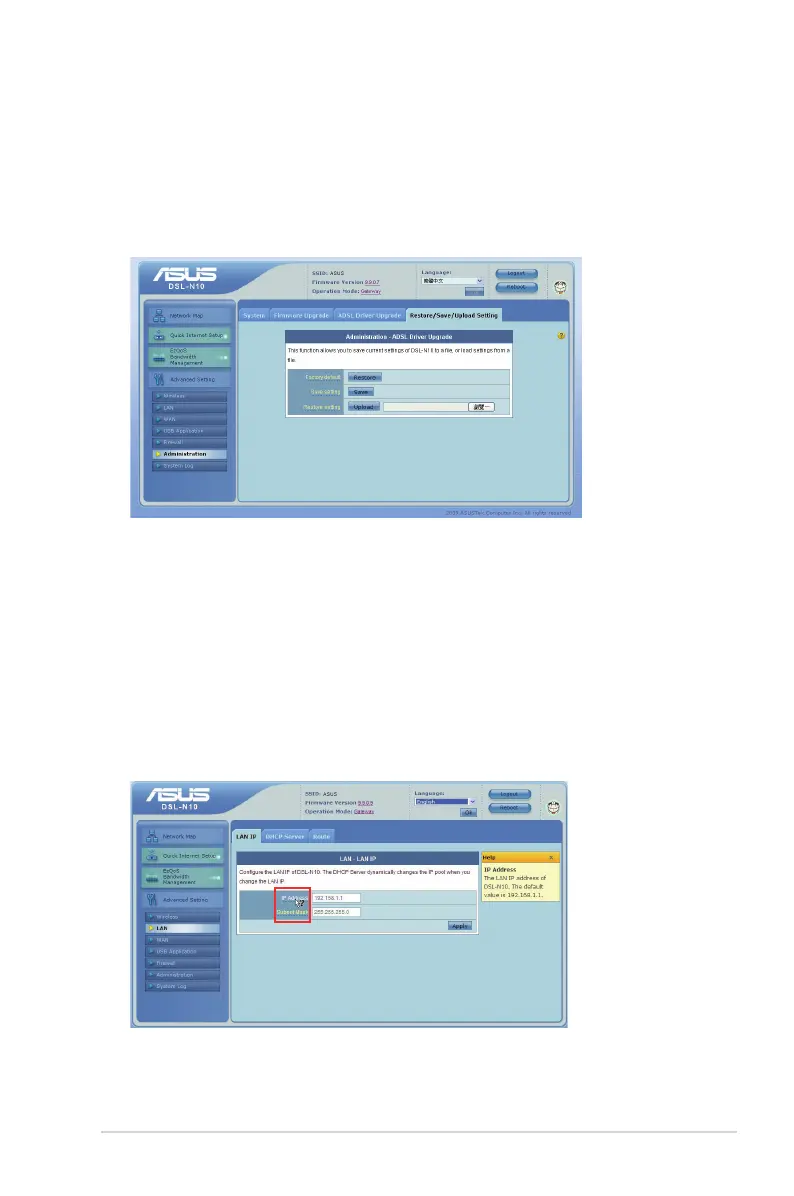

Restoring/Saving/Uploading settings
To restore/save/upload the settings:
1. Click Advanced Setting from the navigation menu at the left side of your
screen.
2. Under the Administration menu, click Restore/Save/Upload Setting.
3. Select the tasks that you want to do:
• To restore to the default factory settings, click Restore, and click OK in the
conrmation message.
• To save the current system settings, click Save, and click Save in the le
download window to save the system le in your preferred path.
• To restore previous system settings, click Browse to locate the system le that
you want to restore, then click Upload.
For more information about Advanced Setting, click the hyperlinked text. The help
information displayed on the right column guides you to use the router’s functions.

Asus DSL-N10 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	-95dBm@1Mbps, -92dBm@11Mbps, -75dBm@54Mbps, -72dBm@72.2Mbps, -68dBm@150Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Bandwidth	2.4 GHz
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Dimensions (WxDxH)	164 x 116.5 x 31 mm
Power requirements	DC 12 V/1 A
Channels quantity	13 channels
DSL specification	ADSL 2/2+
DHCP client	-
Transmit power	17 dBmW
Antennas quantity	1
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication method	Radius
Flash memory	1 MB
Certification	CE, FCC, A-Tick, IC, CT
Internal memory	2 MB
Power consumption (typical)	12 W
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Product color	Black
LED indicators	DSL, LAN, Power, Status, WLAN

Weight and Dimensions

Weight	255 g
