ASUS M2V 2-21
2.7 Connectors

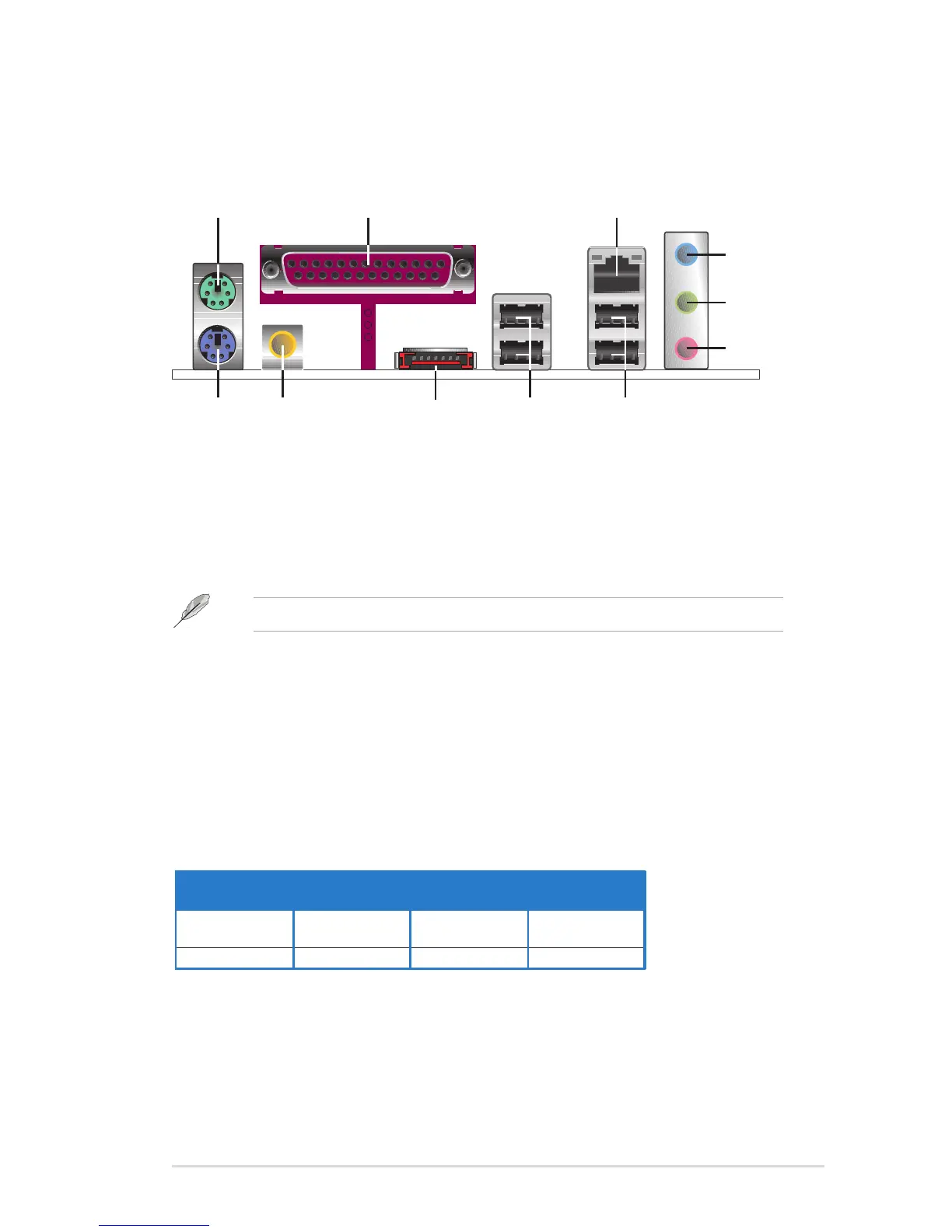

2.7.1 Rear panel connectors
1. PS/2 mouse port. This green 6-pin connector is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or
other devices.
3. RJ-45 port. This port allows connection to a Local Area Network (LAN)
through a network hub.
7
3
4
5
6
1
11
2
10 8
9
Audio 2, 4, or 6-channel conguration
Headset/
2-Speaker 4-Speaker 6-Speaker
Light Blue Line In Line In Bass/Center
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Rear Speaker Out Rear Speaker Out
4. Line-In port. This Line In (light blue) port connects a tape player or
other audio sources.
5. Line-Out port. This Line Out (lime) port connects a headphone or a
speaker. In 4-channel and 6-channel mode, the function of this jack
becomes Front Speaker Out.
6. Microphone port. This Mic (pink) port connects a microphone.
The left LED is blinking in half duplex mode.
