2-26 Chapter 2: Hardware information

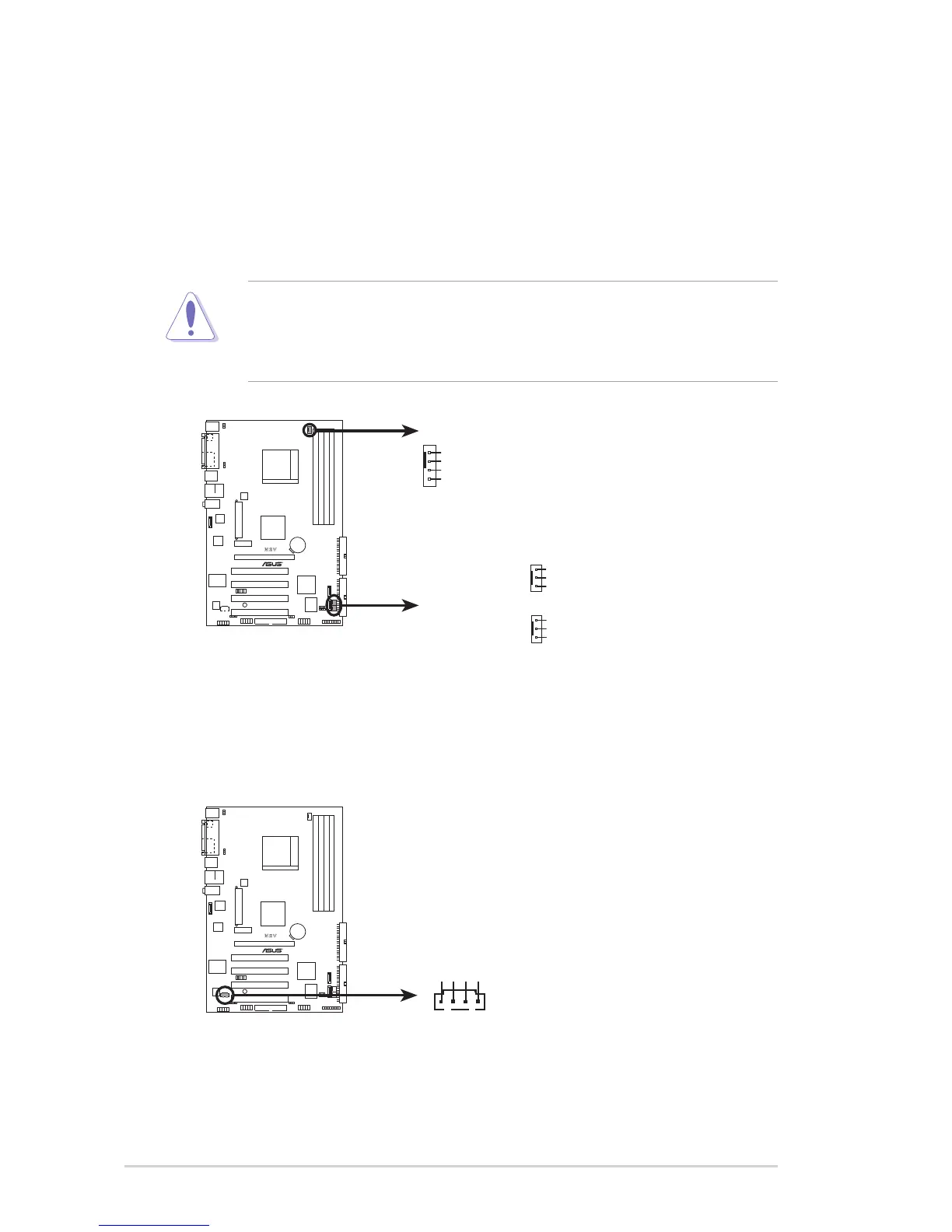

5. CPU, Power and Chassis Fan Connectors
(4-pin CPU_FAN, 3-pin CHA_FAN1, 3-pin CHA_FAN2 )
The fan connectors support cooling fans of 350mA~740mA (8.88W
max.) or a total of 1A~2.22A (26.64W max.) at +12V. Connect the fan
cables to the fan connectors on the motherboard, making sure that the
black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Lack
of sufcient air ow within the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on
the fan connectors!
M2 V
M2V Fan Connectors
CPU_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
CHA_FAN1
CHA_FAN2
GND
Rotation
+12V
GND
Rotation
+12V
6. Internal audio connectors (4-pin CD)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card.
M2 V
M2V Internal Audio Connector
CD
(black)
Right Audio Channel Left Audio Channel
Ground
Ground
