2-8 Chapter 2: Hardware information
2.3.2 Installing the heatsink and fan
The AMD
®
Phenom™ FX / Phenom / Athlon™/ Sempron™ processor requires aPhenom™ FX / Phenom / Athlon™/ Sempron™ processor requires aprocessor requires a
specially designed heatsink and fan assembly to ensure optimum thermal condition
and performance.
To install the CPU heatsink and fan:

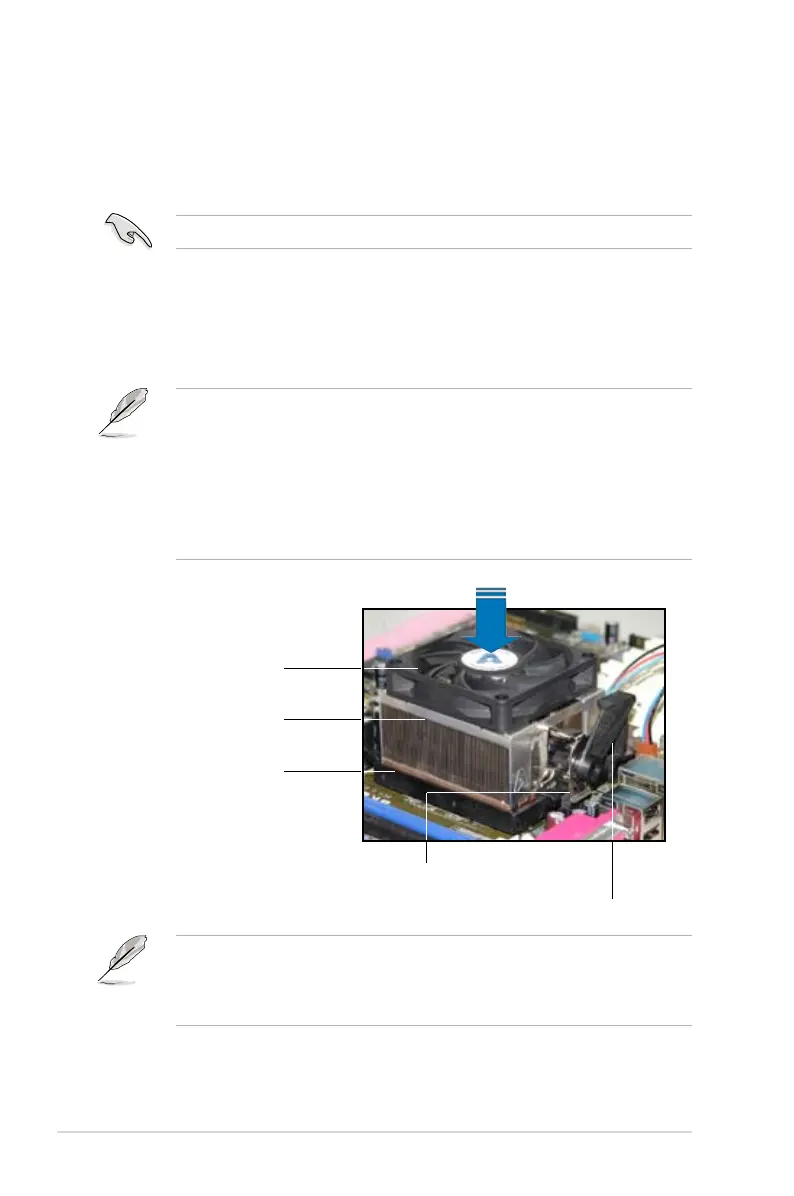

1. Place the heatsink on top of the installed CPU, making sure that the heatsink
ts properly on the retention module base.
Your boxed CPU heatsink and fan assembly should come with installation
instructions for the CPU, heatsink, and the retention mechanism. If the
instructions in this section do not match the CPU documentation, follow the
latter.
Retention module base
CPU heatsink
CPU fan
Retention bracket lock
Retention bracket
Make sure that you use only AMD-certied heatsink and fan assembly.
•
The retention module base is already installed on the motherboard upon
purchase.
•
You do not have to remove the retention module base when installing the
CPU or installing other motherboard components.
•
If you purchased a separate CPU heatsink and fan assembly, make sure
that a Thermal Interface Material is properly applied to the CPU heatsink or
CPU before you install the heatsink and fan assembly.
