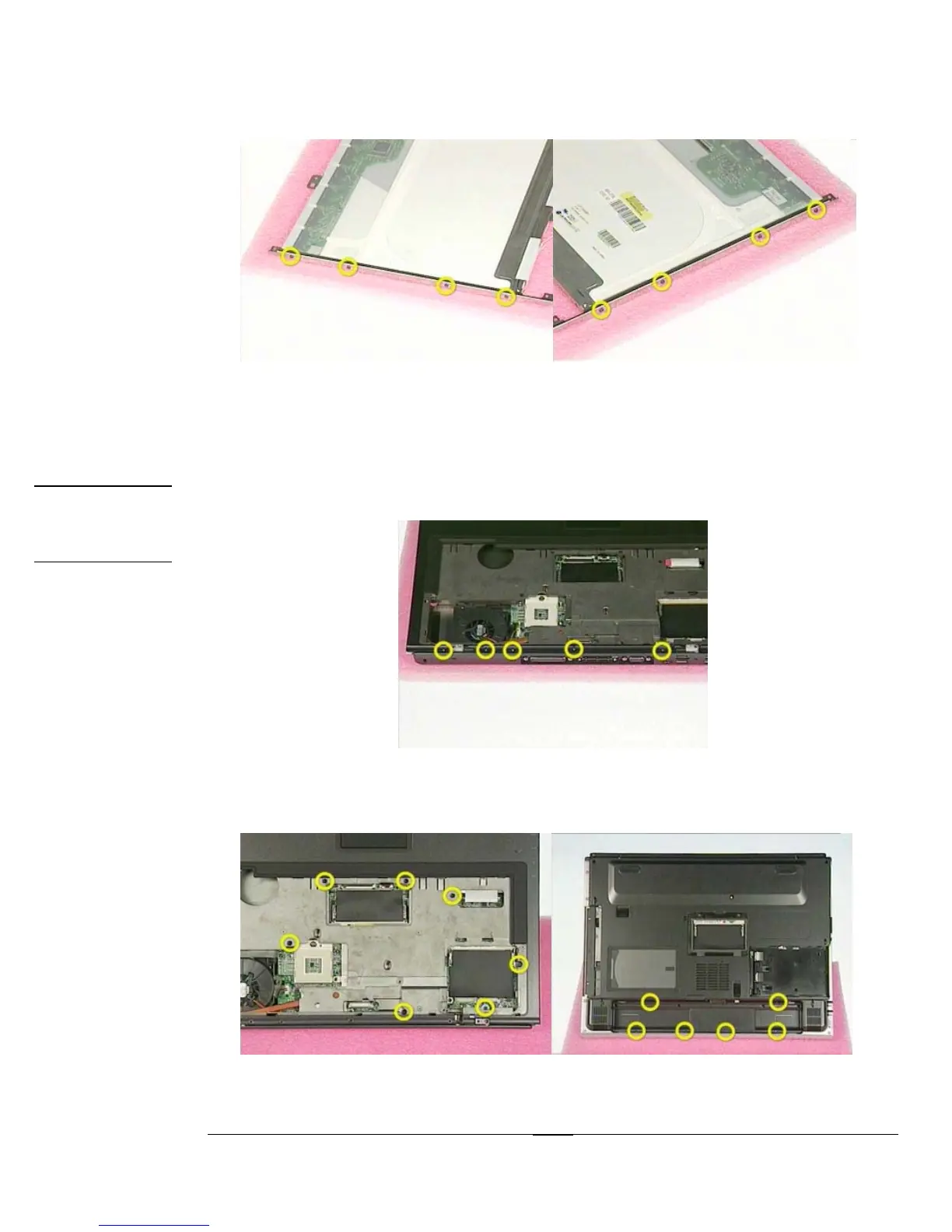

DISASSEMBLY PROCEDURE
M2*3L
M2*3L
Top Case Module
The illustrations below show how to disassemble and remove the top case module
of the notebook.
Removing Top Case Module
TOP CASE
MODULE
REMOVE
1. Remove 5 screw pads and 5 screws(M2*3L*(K)) on top side.
M2*3L
2. Remove 7 screws (M2*6L(K)) on top case and 16 screws (M2*3L(K)+M2*6L(K)) on
bottom case.
M2*6L
M2*3L
3 - 12
