Asus M6000 Series User Manual

DISASSEMBLY PROCEDURE

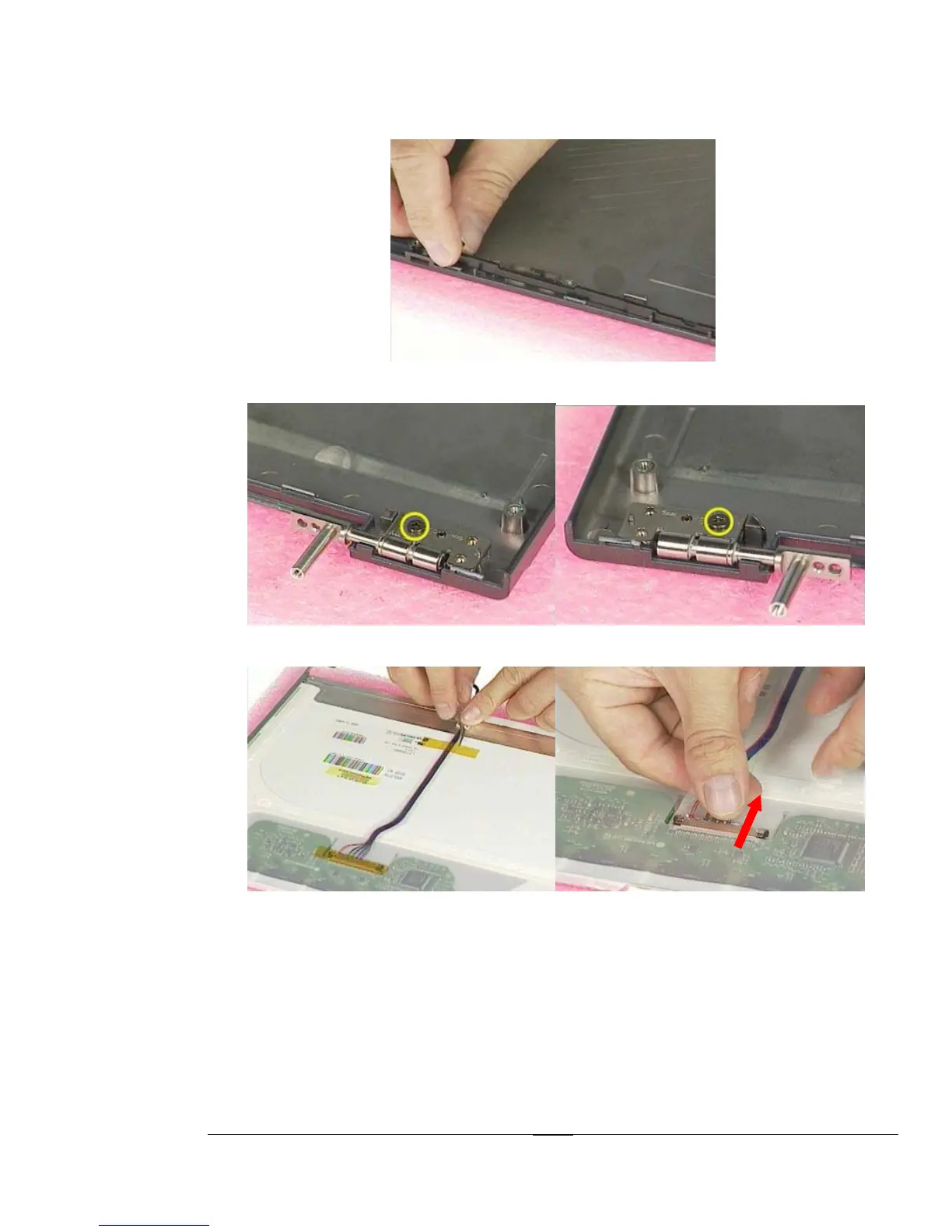

10. Remove 1 screw (M2.5*4L(K)) and 1 screw on the other side, then take right and lift
hinge off.
M2.5*4L
M2.5*4L
11. Remove 2 tapes and dissconnect coaxial cable then take it away.
12. Finally, Remove 4 screws(M2*3L(K)) on the right LCD bracket , and 4 screws on the ilft
side to disassemble LCD brackets.
3 - 11
