ASUS P8H61-M LX R2.01-10

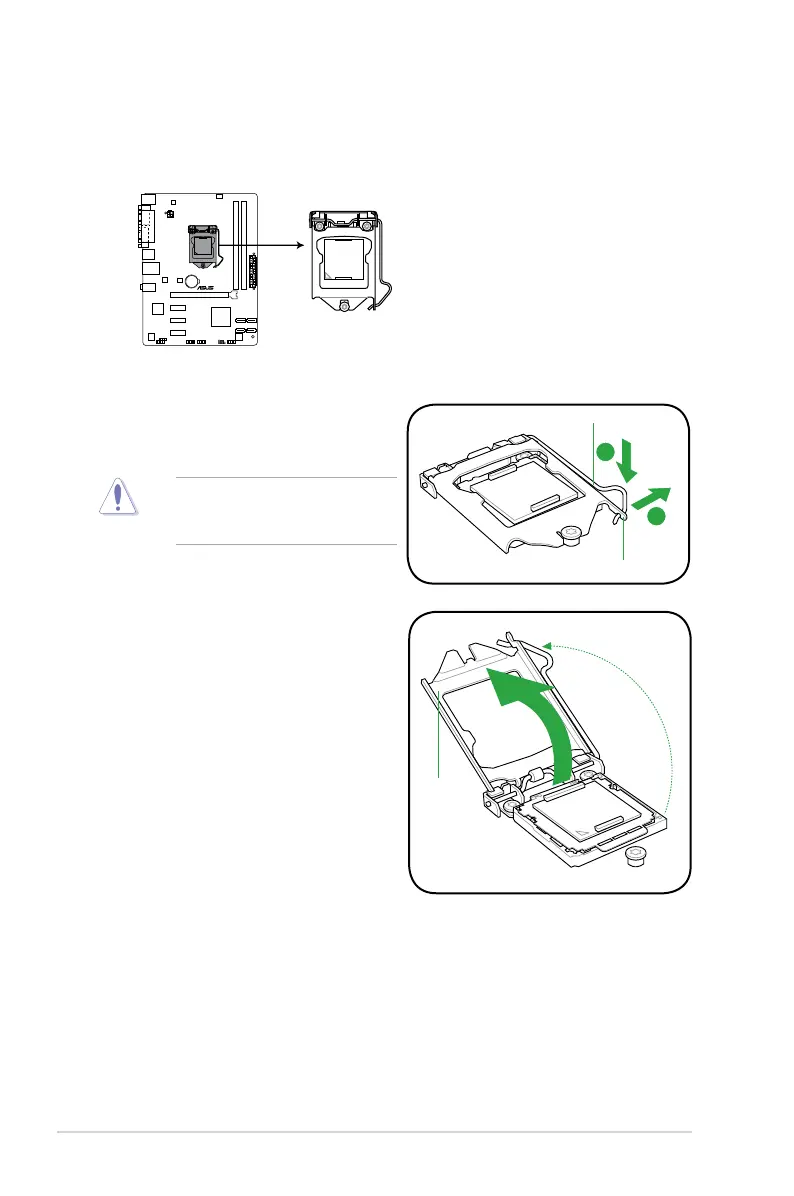

1.6.1 Installing the CPU
To install a CPU:
1. Locate the CPU socket on the motherboard.
To prevent damage to the socket pins,
do not remove the PnP cap unless
you are installing a CPU.
2. Press the load lever with your thumb (A),
and then move it to the right (B) until it is
released from the retention tab.
A
B
Load lever
Retention tab
P8H61-M LX R2.0
P8H61-M LX R2.0 CPU socket LGA1155
3. Lift the load lever in the direction of the
arrow until the load plate is completely
lifted.
Load plate

Asus P8H61-I LX R2.0 RM SI Specifications

General

Form Factor	Mini ITX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Max Memory	16GB
Memory Type	DDR3
Expansion Slots	1 x PCIe 2.0 x16
Storage Interfaces	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Integrated Graphics	Depends on CPU
LAN	Realtek 8111E Gigabit LAN
Power Connector	24-pin ATX
USB Ports	8 x USB 2.0 (4 rear, 4 internal)
