1-31Chapter 1: Product introduction
8. System panel connector (10-1 pin PANEL)
This connector supports several chassis-mounted functions.
System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
Hard disk drive activity LED (2-pin +HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
Power/Soft-off button (2-pin PWRBTN)
This 2-pin connector is for the system power button.
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
P8H61-M LX R2.0
PIN 1
PWR BTN
PLED+
PLED-
PWR
GND
HD_LED+
HD_LED-
Ground
Reset
F_PANEL
PWR LED
+HD_LED RESET

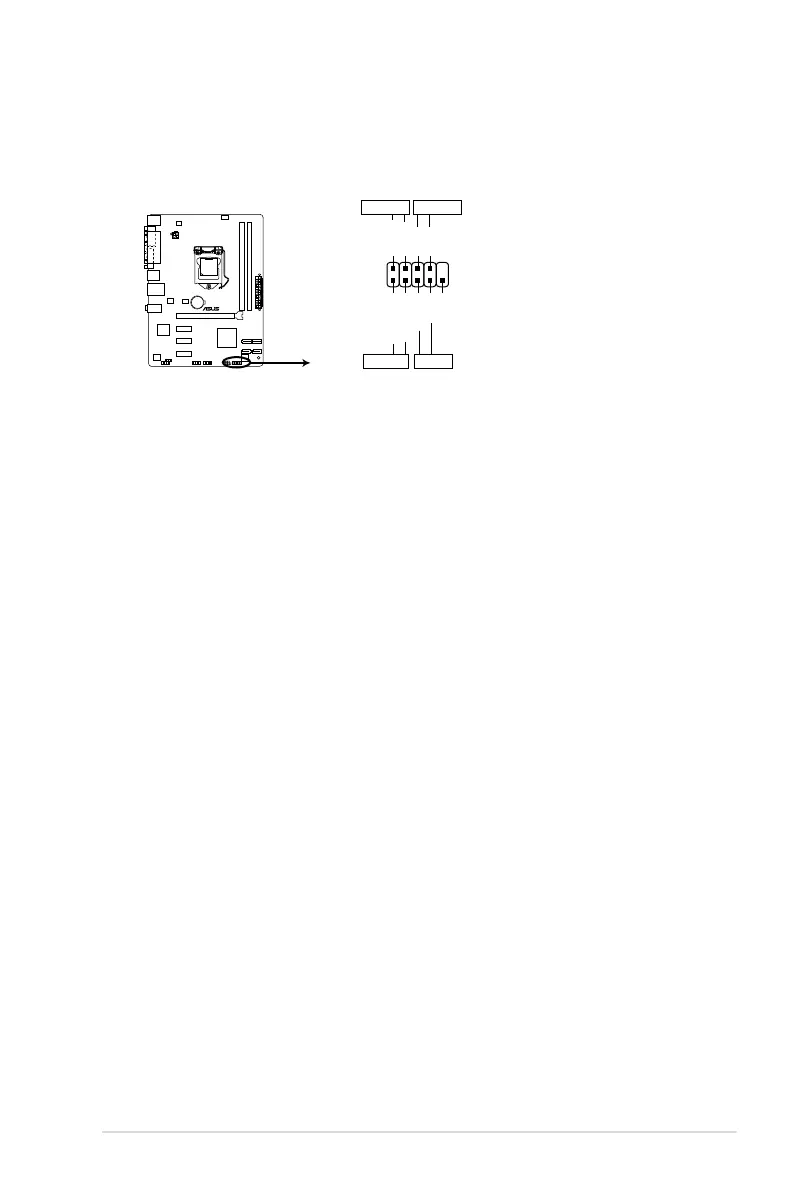

P8H61-M LX R2.0 System panel connector

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus P8H61-I LX R2.0 RM SI and is the answer not in the manual?

Asus P8H61-I LX R2.0 RM SI Specifications

General IconGeneral
Form FactorMini ITX
ChipsetIntel H61
CPU SocketLGA 1155
Memory Slots2 x DIMM
Max Memory16GB
Memory TypeDDR3
Expansion Slots1 x PCIe 2.0 x16
Storage Interfaces4 x SATA 3Gb/s
AudioRealtek ALC887 8-Channel High Definition Audio CODEC
Integrated GraphicsDepends on CPU
LANRealtek 8111E Gigabit LAN
Power Connector24-pin ATX
USB Ports8 x USB 2.0 (4 rear, 4 internal)
