ASUS P8H61-M LX R2.01-30
6. Intel
®

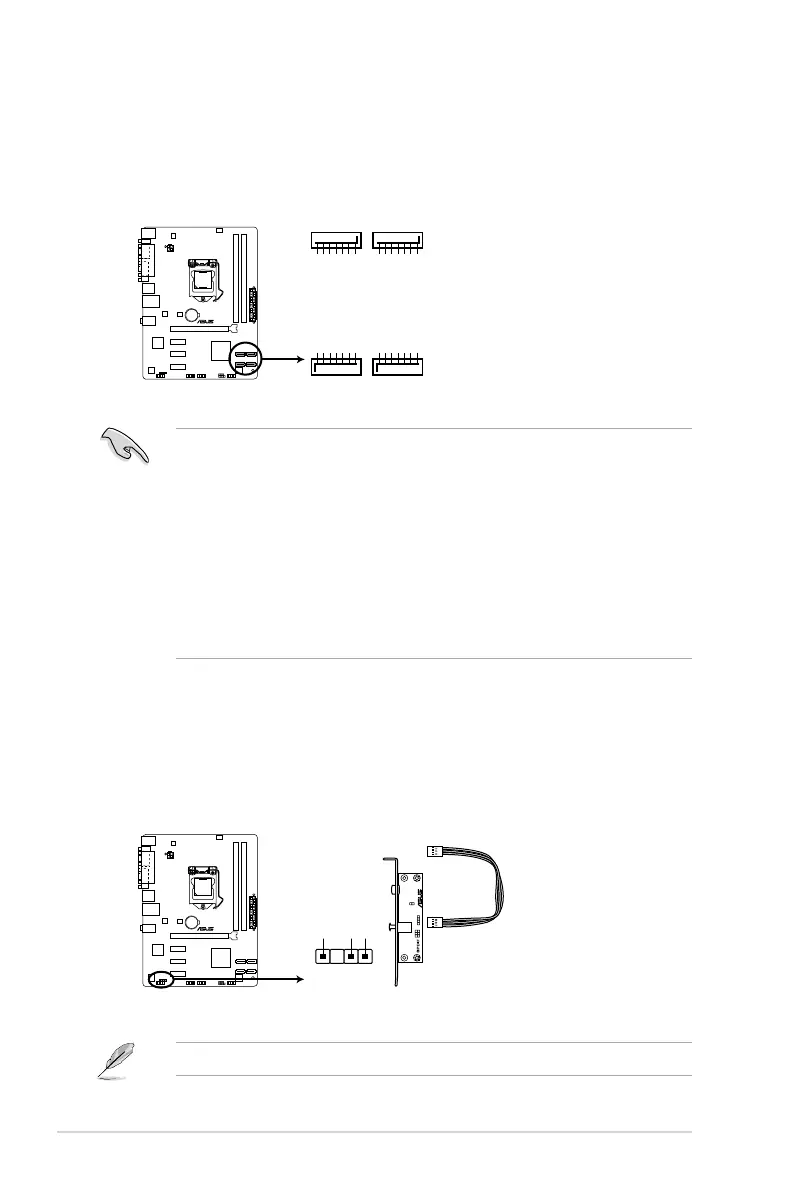

H61 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4)
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
• You must install Windows
®
XP Service Pack 3 or a later version before using Serial ATA
hard disk drives.
• Due to H61 Chipset limitation, AHCI Mode only works on Windows
®
Vista / Windows
®
7.
Please use IDE Mode on Windows
®
XP.
• [IDE] is the default SATA type. Under Windows
®
XP, there is no need to change the
SATA type.
• To congure the SATA type in BIOS, click Advanced Mode > Advanced tab > SATA
Conguration > SATA Mode Selection.
• When using hot-plug and NCQ on Windows
®
Vista / Windows
®
7, set the SATA Mode
item in the BIOS to [AHCI Mode]. See section 2.5.4 SATA Conguration for details.
7. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.
Connect the S/PDIF Out module cable to this connector, then install the module to a
slot opening at the back of the system chassis.
The S/PDIF module is purchased separately.
SATA3G_2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
GND RSATA_RXP4 RSATA_RXN4 GND RSATA_TXN4 RSATA_TXP4 GND
SATA3G_4
SATA3G_1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
GND RSATA_RXP3 RSATA_RXN3 GND RSATA_TXN3 RSATA_TXP3 GND
SATA3G_3
P8H61-M LX R2.0
P8H61-M LX R2.0 Intel
®
SATA 3.0Gb/s connectors
SPDIF_OUT
+5V SPDIFOUT GND
P8H61-M LX R2.0
P8H61-M LX R2.0 Digital audio connector

Asus P8H61-I LX R2.0 RM SI Specifications

General

Form Factor	Mini ITX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Max Memory	16GB
Memory Type	DDR3
Expansion Slots	1 x PCIe 2.0 x16
Storage Interfaces	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Integrated Graphics	Depends on CPU
LAN	Realtek 8111E Gigabit LAN
Power Connector	24-pin ATX
USB Ports	8 x USB 2.0 (4 rear, 4 internal)
