3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.
Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.

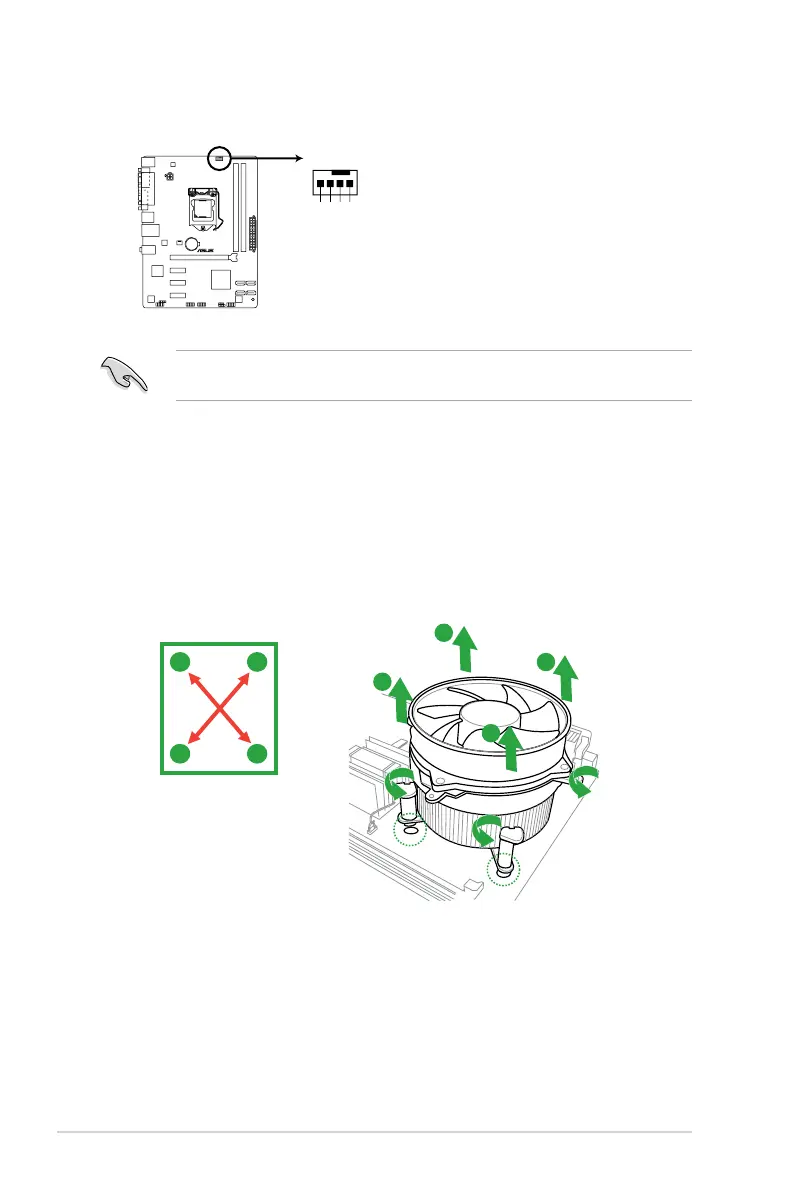

1.6.3 Uninstalling the CPU heatsink and fan
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from the connector on the motherboard.
2. Rotate each fastener counterclockwise.
3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and
fan assembly from the motherboard.
A
A
B
B
A
A
B
B
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
P8H61-M LX R2.0
P8H61-M LX R2.0 CPU fan connector

Asus P8H61-I LX R2.0 RM SI Specifications

General

Form Factor	Mini ITX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Max Memory	16GB
Memory Type	DDR3
Expansion Slots	1 x PCIe 2.0 x16
Storage Interfaces	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Integrated Graphics	Depends on CPU
LAN	Realtek 8111E Gigabit LAN
Power Connector	24-pin ATX
USB Ports	8 x USB 2.0 (4 rear, 4 internal)
