Asus P8H61-I LX R2.0 RM SI User Manual

1-23Chapter 1: Product introduction

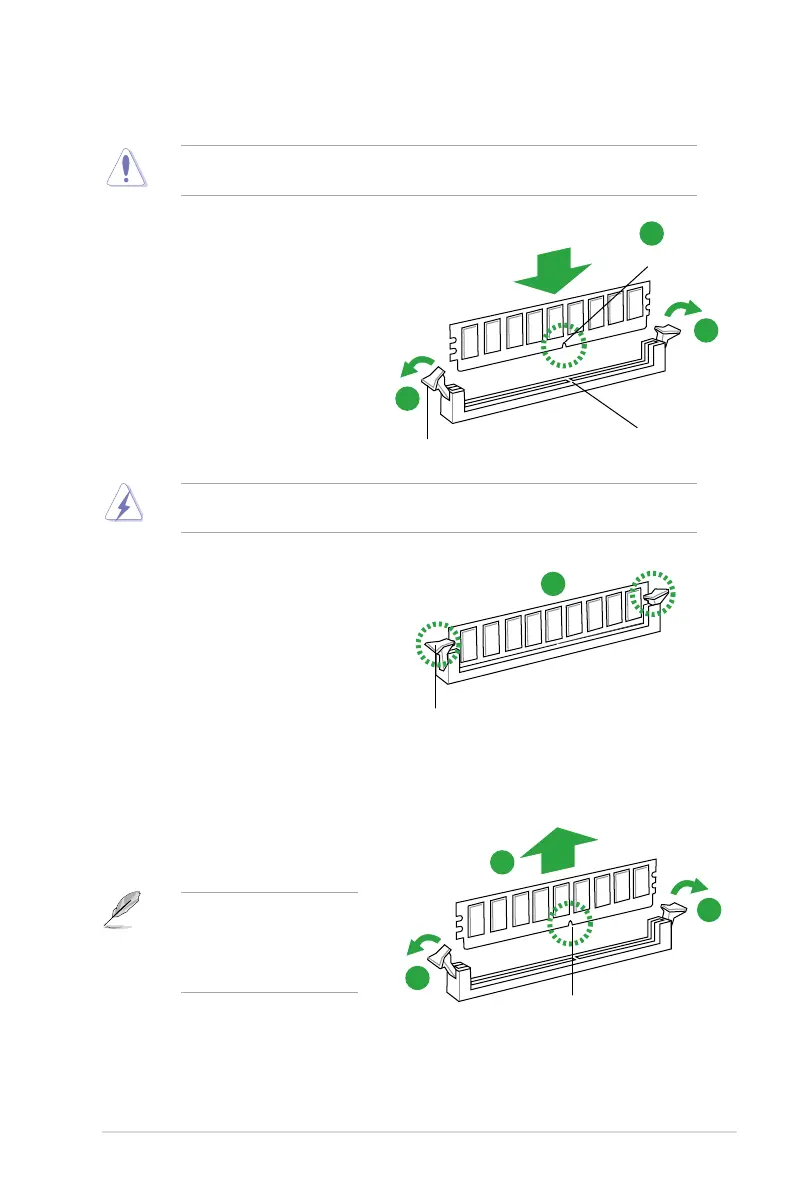

1.7.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1. Press the retaining clips outward
to unlock a DIMM socket.
2. Align a DIMM on the socket
such that the notch on the DIMM
matches the DIMM slot key on
the socket.
Unlocked retaining clip
1
DIMM notch
2
1
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3. Firmly insert the DIMM into the
socket until the retaining clips
snap back in place and the DIMM
is properly seated.
Locked Retaining Clip
3
1.7.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the
retaining clips outward to unlock
the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with
your ngers when pressing
the retaining clips. The DIMM
might get damaged when it
ips out with extra force.
DIMM notch
1
1
2
DIMM slot key

Asus P8H61-I LX R2.0 RM SI Specifications

General

Form Factor	Mini ITX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Max Memory	16GB
Memory Type	DDR3
Expansion Slots	1 x PCIe 2.0 x16
Storage Interfaces	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Integrated Graphics	Depends on CPU
LAN	Realtek 8111E Gigabit LAN
Power Connector	24-pin ATX
USB Ports	8 x USB 2.0 (4 rear, 4 internal)
