You can connect the front panel USB cable to the ASUS Q-Connector (USB, blue) rst, and
then install the Q-Connector (USB) to the USB connector onboard if your chassis supports
front panel USB ports.
Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

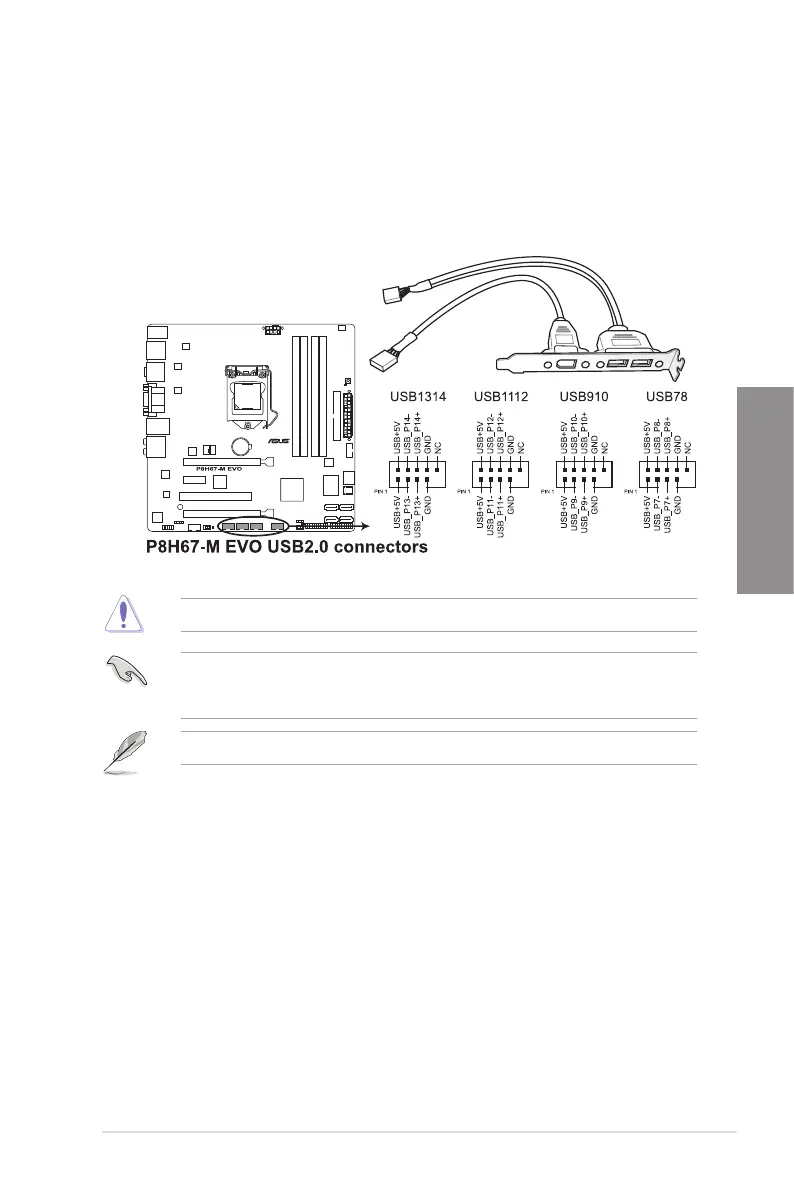

4. USB 2.0 connectors (10-1 pin USB78, USB910, USB1112, USB1314)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480 Mbps connection speed.
The USB 2.0 module is purchased separately.

Asus P8H67-M EVO Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
CPU Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCI Express 2.0 x1	2
PCI Slots	1
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 3.0 Ports	2
USB 2.0 Ports	12
Audio	Realtek ALC892 8-Channel High Definition Audio CODEC
LAN	Realtek 8111E Gigabit LAN controller
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4 x DIMM
Memory Standard	DDR3 1333/1066 MHz
Onboard Video	Supported only by CPU with integrated graphics
