ASUS P8H67-M EVO 2-15
Chapter 2
2.2.7 Onboard LEDs

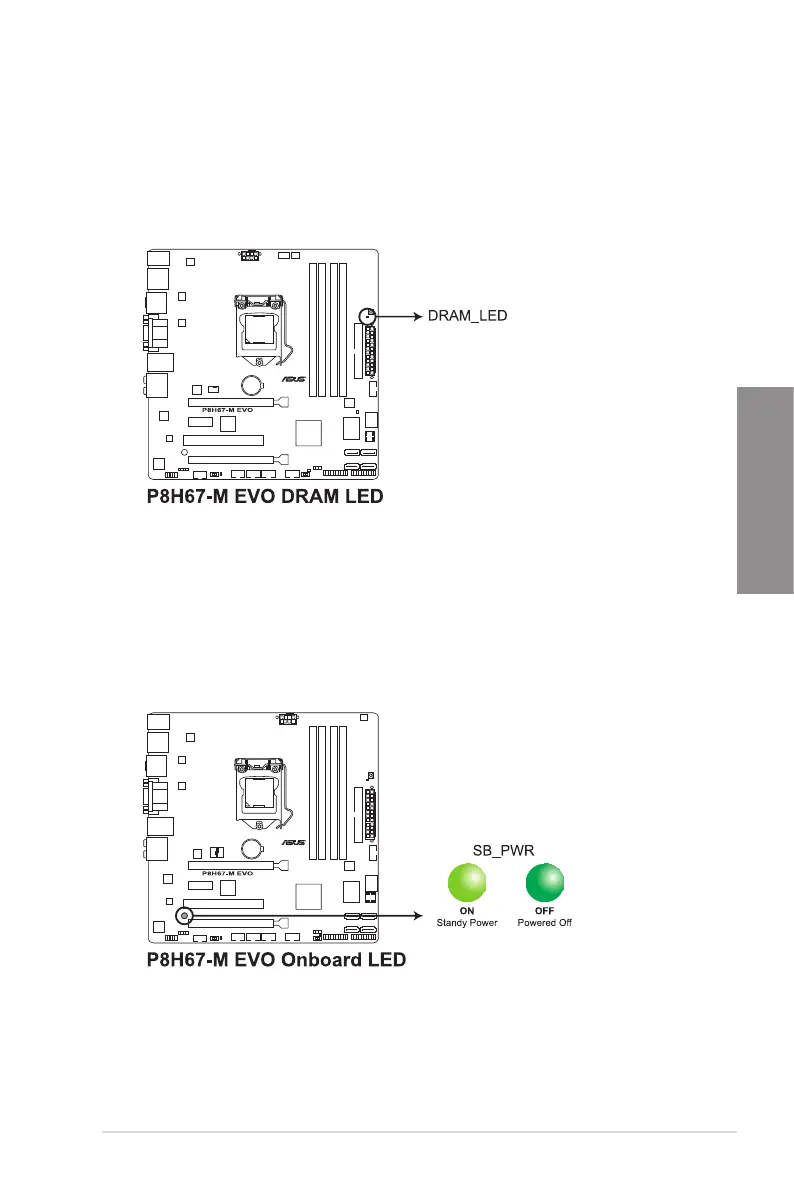

1. DRAM LED
The DRAM LED indicates DRAM status during POST (Power-on Self Test). If an error
is found , the DRAM LED will continue lighting until the problem is solved. This user-
friendly design provides an intuitional way to locate the root problem within a second.
2. Standby power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
