Asus P8H67-M EVO User Manual

ASUS P8H67-M EVO 2-39
Chapter 2
2.3.10 Rear panel connection

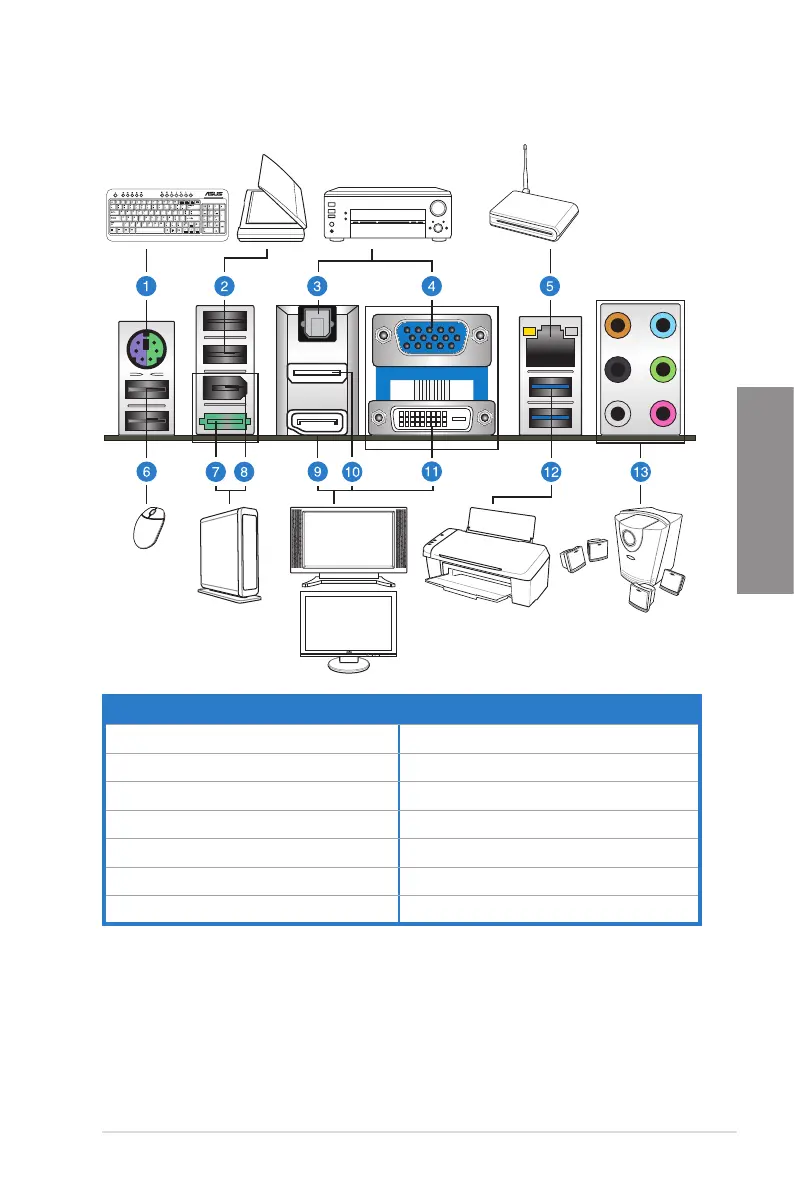

Rear panel connectors
1. PS/2 keyboard/mouse combo port 8. IEEE 1394a port
2. USB 2.0 ports 3 and 4 9. DisplayPort output port**
3. Optical S/PDIF Out port 10. HDMI out port**
4. VGA out port 11. DVI out pot
5. LAN (RJ-45) port* 12. USB 3.0 ports 1 and 2
6. USB 2.0 ports 5 and 6 13. Audio I/O ports***
7. Power External SATA port
*and **: Refer to the tables on the next page for LAN port and audio port denitions.

Asus P8H67-M EVO Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
CPU Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCI Express 2.0 x1	2
PCI Slots	1
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 3.0 Ports	2
USB 2.0 Ports	12
Audio	Realtek ALC892 8-Channel High Definition Audio CODEC
LAN	Realtek 8111E Gigabit LAN controller
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4 x DIMM
Memory Standard	DDR3 1333/1066 MHz
Onboard Video	Supported only by CPU with integrated graphics
