2-2 Chapter 2: Hardware information
Chapter 2

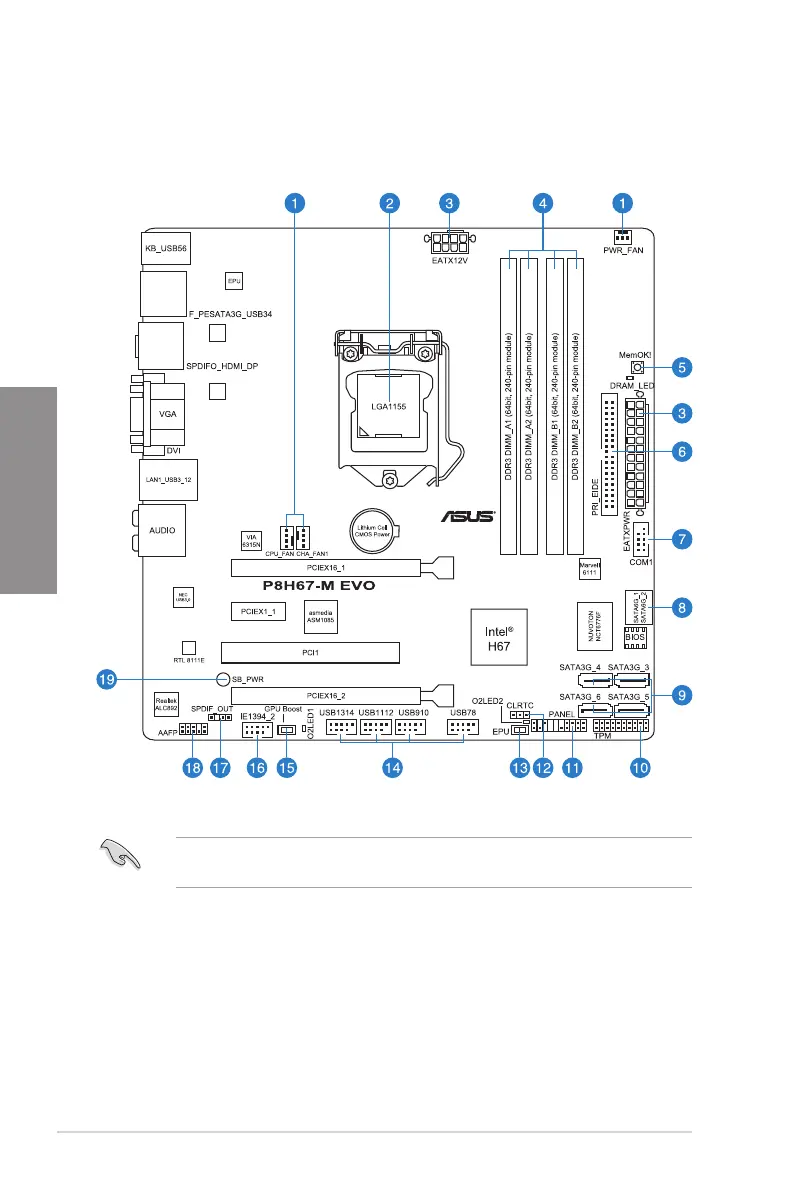

2.2.1 Motherboard layout
Refer to
2.7 Connectors
for more information about rear panel connectors and internal
connectors.
2.2 Motherboard overview
