ASUS P8H67-M EVO 2-11
Chapter 2
2.2.5 Expansion slots
Ensure to unplug the power cord before adding or removing expansion cards. Failure to do
so may cause you physical injury and damage motherboard components.

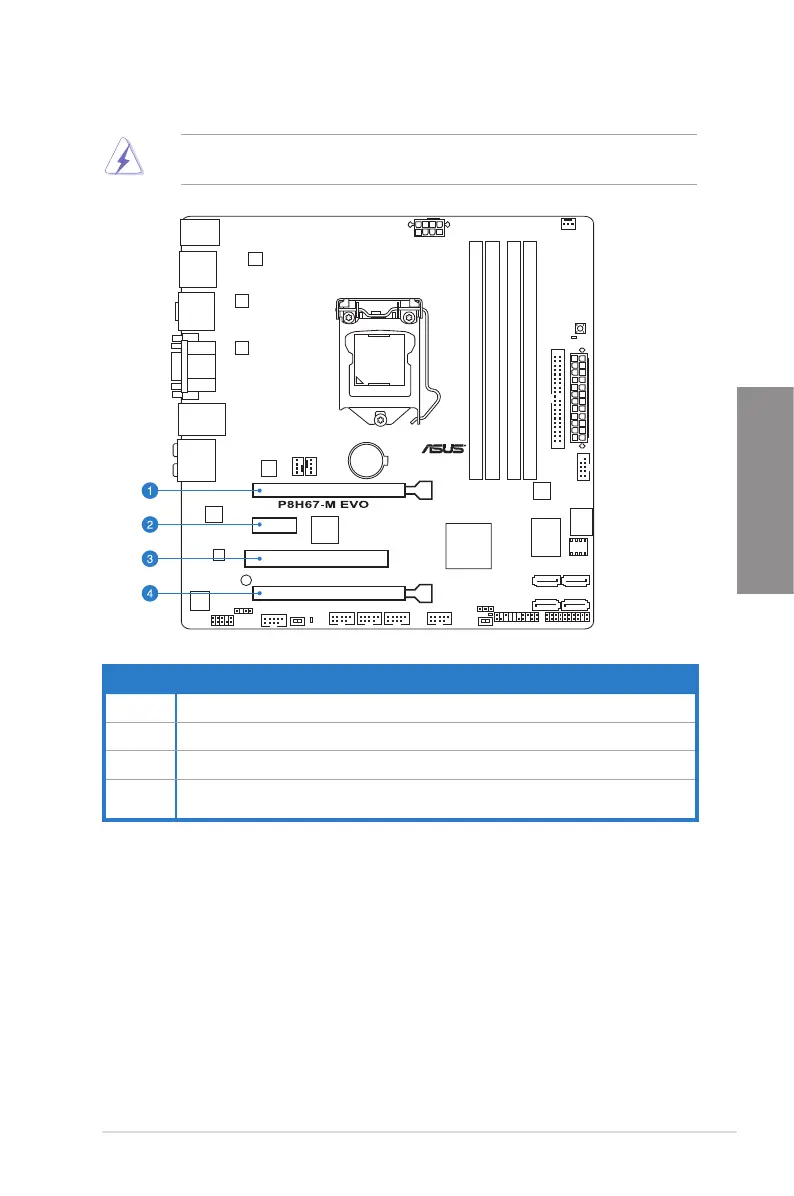

Slot No. Slot Description
1 PCIe 2.0 x16_1 slot [blue] (at x16 mode)
2 PCIe 2.0 x1_1 slot
3 PCI slot
4
PCIe 2.0 x16_2 slot [black] (at x4 mode, compatible with PCIe x1, x2 and x4
devices)
