2-42 Chapter 2: Hardware information
Chapter 2

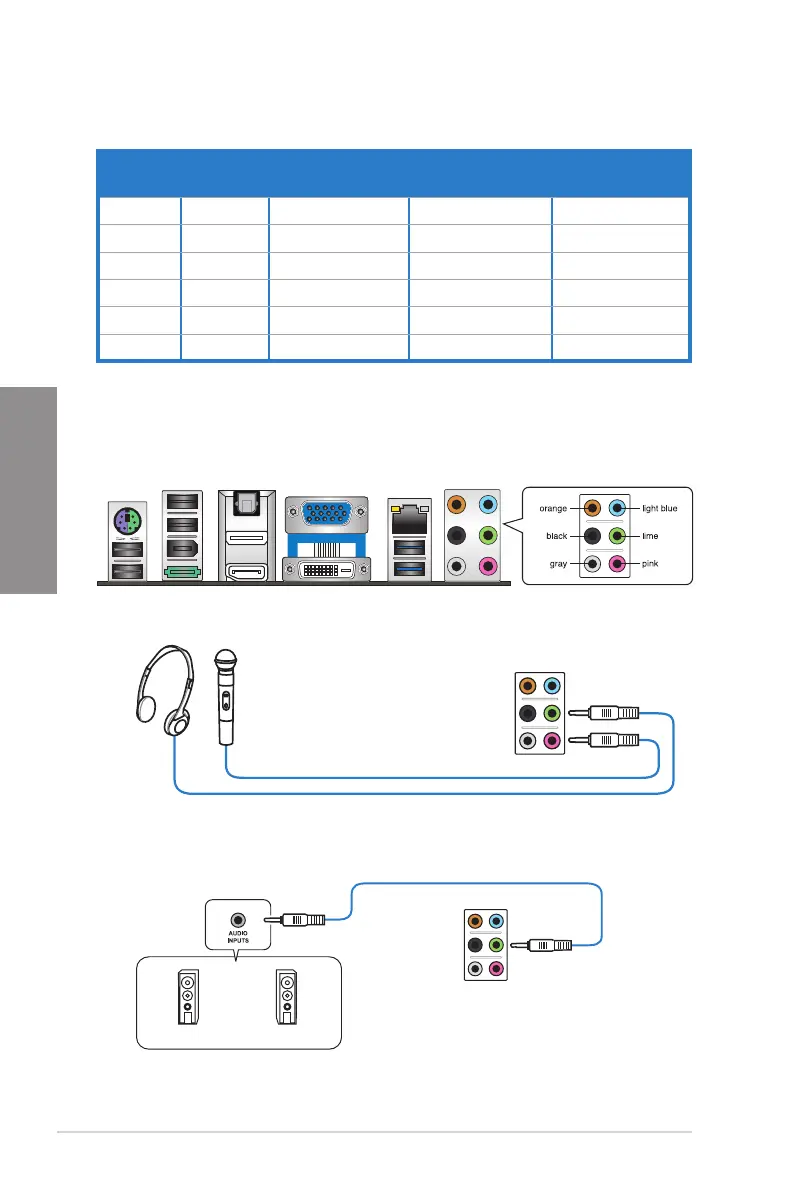

2.3.11 Audio I/O connections
Audio I/O ports
***Audio 2, 4, 6, or 8-channel conguration
Port Headset
2-channel
4-channel 6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
Gray – – – Side Speaker Out
Connect to Headphone and Mic
Connect to Stereo Speakers

Asus P8H67-M EVO Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
CPU Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCI Express 2.0 x1	2
PCI Slots	1
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 3.0 Ports	2
USB 2.0 Ports	12
Audio	Realtek ALC892 8-Channel High Definition Audio CODEC
LAN	Realtek 8111E Gigabit LAN controller
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4 x DIMM
Memory Standard	DDR3 1333/1066 MHz
Onboard Video	Supported only by CPU with integrated graphics
