ASUS P8H67-M EVO 2-23
Chapter 2

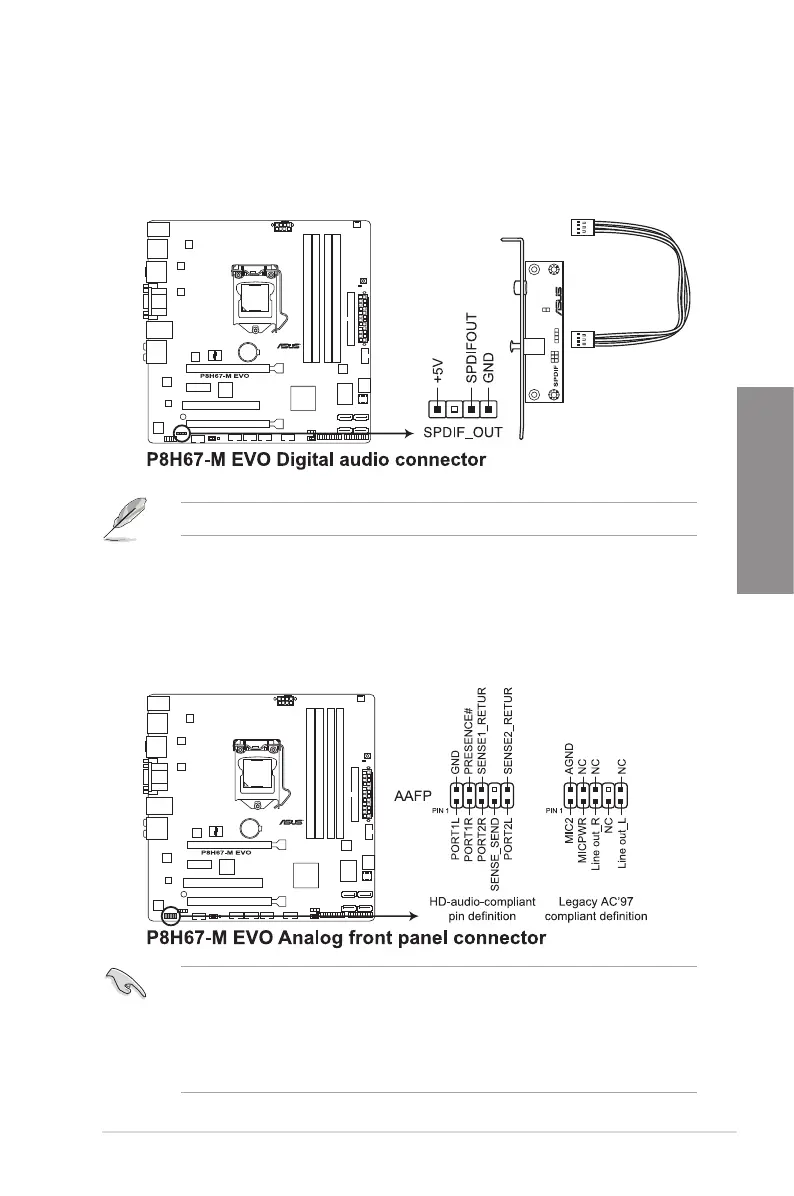

7. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port(s).
Connect the S/PDIF Out module cable to this connector, then install the module to a
slot opening at the back of the system chassis.
The S/PDIF module is purchased separately.
8. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard’s high-denition audio capability.
• If you want to connect a high-denition front panel audio module to this connector, setIf you want to connect a high-denition front panel audio module to this connector, set
the
Front Panel Type
item in the BIOS setup to
[HD];
if you want to connect an AC'97
front panel audio module to this connector, set the item to
[AC97]
. By default, this
connector is set to
[HD]
.

Asus P8H67-M EVO Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
CPU Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCI Express 2.0 x1	2
PCI Slots	1
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 3.0 Ports	2
USB 2.0 Ports	12
Audio	Realtek ALC892 8-Channel High Definition Audio CODEC
LAN	Realtek 8111E Gigabit LAN controller
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4 x DIMM
Memory Standard	DDR3 1333/1066 MHz
Onboard Video	Supported only by CPU with integrated graphics
