Asus P9D-E/4L User Manual

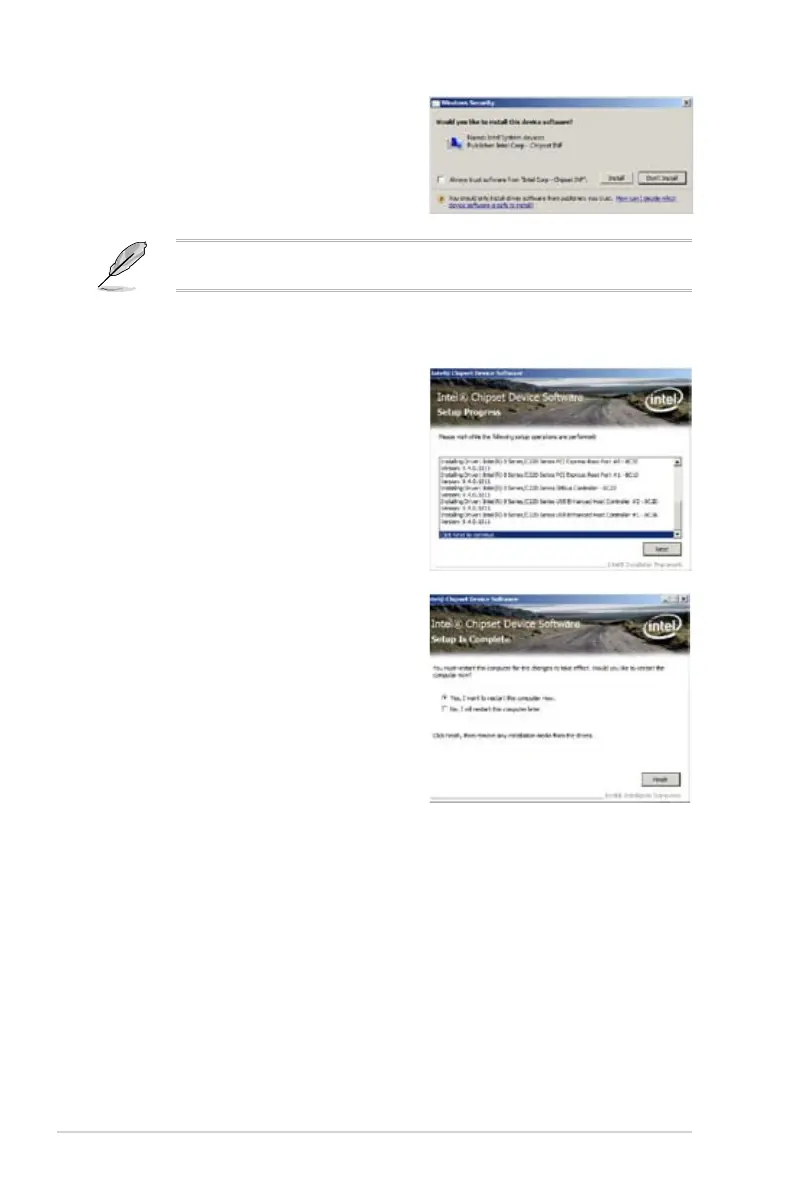

6-12 Chapter 6: Driver installation
9. When finished, click Next.
10. When prompted to restart the computer,
select
Yes, I want to restart this
computer now
then click
Finish
to
complete the installation.
8. Click
Install
in the
Windows Security
window.
The Windows Security window may appear more than once and you may have to click
Install
several times to continue with the installation.
9. When finished, click Next.
10. When prompted to restart the computer,
select Yes, I want to restart this computer
now then click Finish to complete the
installation.
8. Click Install in the Windows Security
window.
The Windows Security window may appear more than once and you may have to click Install
several times to continue with the installation.

Asus P9D-E/4L Specifications

General

USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1, 2
Maximum UDIMM memory	32 GB
Supported DIMM module capacities	2GB, 4GB, 8GB
TPM connector	Yes
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
PCI Express x8 (Gen 2.x) slots	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2300
On-board graphics card memory	32 MB
Cables included	SATA, USB-SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1150 (Socket H3)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Motherboard chipset	Intel® C224
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
