2.3.4 Installing the CPU heatsink in rack
The Intel
®
1150 processor requires a specially designed heatsink to ensure optimum thermal
condition and performance.

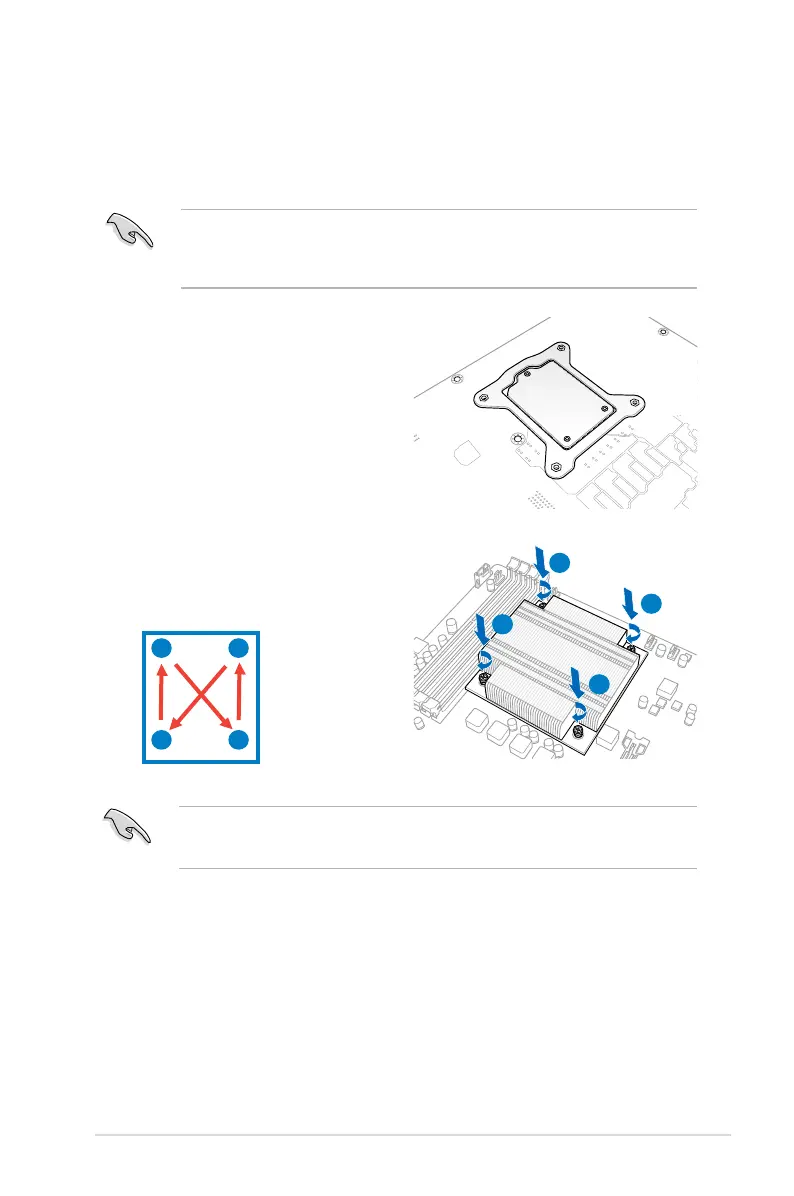

1. Peel off the sticker on the heatsink metal
plate and affix the plate to the back of
the motherboard, matching the standoffs
to the heatsink screw holes.
2. Use a Phillips screwdriver to tighten
the four heatsink screws using the
recommended sequence below.
• Ensure that the heatsink is not skewed or tilted, otherwise the CPU will overheat.
• Do not overtighten the screws. Doing so can damage the CPU.
A
C
B
D
A
C
D
B
• Ensure that you use qualified heatsink assembly only.
• Ensure that you have applied the thermal interface material to the top of the CPU
before installing the heatsink and fan.

Asus P9D-E/4L Specifications

General

USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1, 2
Maximum UDIMM memory	32 GB
Supported DIMM module capacities	2GB, 4GB, 8GB
TPM connector	Yes
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
PCI Express x8 (Gen 2.x) slots	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2300
On-board graphics card memory	32 MB
Cables included	SATA, USB-SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1150 (Socket H3)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Motherboard chipset	Intel® C224
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
