Asus P9D-E/4L User Manual

2-24
Chapter 2: Hardware information

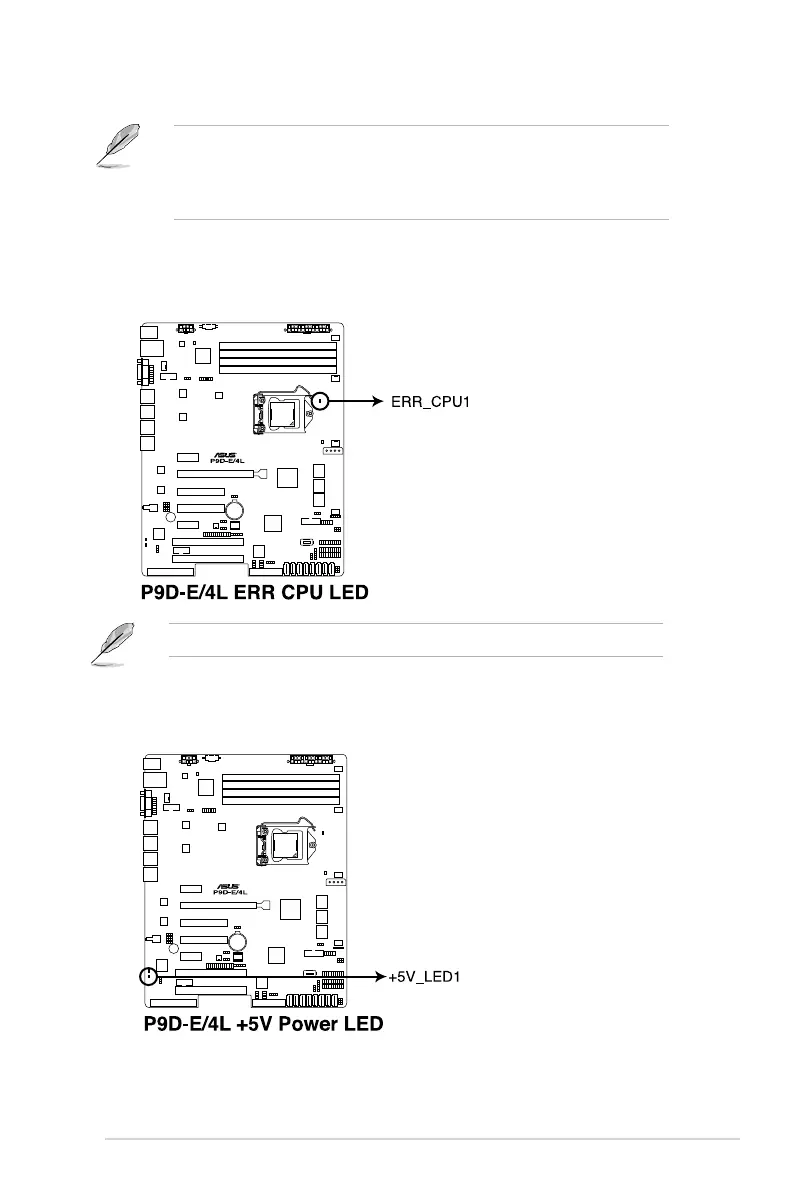

3. CPU Warning LED (ERR_CPU1)
The CPU warning LED lights up to indicate that a CPU error or failure has occurred.
4. Power LED (+5V_LED1)
This LED lights up when the Power-on button is pressed and the system is on.
• The heartbeat LED functions only when you install the ASUS ASMB7 Management
card.
• Everytime after the AC power is replugged, you have to wait for about 60 seconds
for the system to power up.
The warning LED functions only when you install the ASUS ASMB7 Management card.

Asus P9D-E/4L Specifications

General

USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1, 2
Maximum UDIMM memory	32 GB
Supported DIMM module capacities	2GB, 4GB, 8GB
TPM connector	Yes
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
PCI Express x8 (Gen 2.x) slots	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2300
On-board graphics card memory	32 MB
Cables included	SATA, USB-SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1150 (Socket H3)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Motherboard chipset	Intel® C224
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
