Asus P9D-E/4L User Manual

2-28
Chapter 2: Hardware information

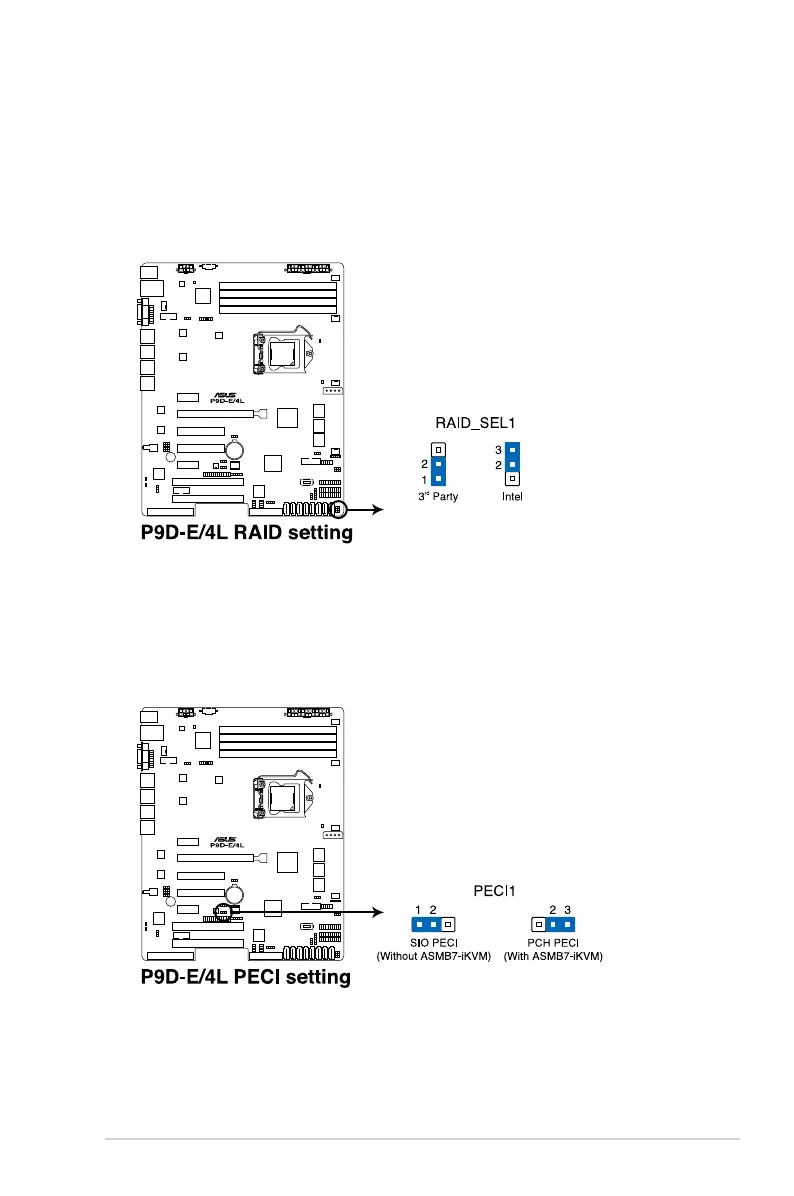

4. RAID conguration utility selection (3-pin RAID_SEL1)
This jumper allows you to select the RAID configuration utility to use when you create
disk arrays. Place the jumper caps over pins 1–2 if you want to use the third party
software RAID Utility; otherwise, place the jumper caps to pins 2–3 to use the Intel
®
Rapid Storage Technology enterprise SATA Option ROM Utility.
5. Platform Enviromental Control Interface Setting (3-pin PECI1)
When an ASMB7-iKVM is installed, set these to pins 2-3 for correct sensor information
of the Platform Environmental Control Interface (PECI). Set to pins 1-2 if ASMB7-iKVM
is not installed.

Asus P9D-E/4L Specifications

General

USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1, 2
Maximum UDIMM memory	32 GB
Supported DIMM module capacities	2GB, 4GB, 8GB
TPM connector	Yes
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
PCI Express x8 (Gen 2.x) slots	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2300
On-board graphics card memory	32 MB
Cables included	SATA, USB-SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1150 (Socket H3)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Motherboard chipset	Intel® C224
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
