ASUS P9D-E/4L
2-35

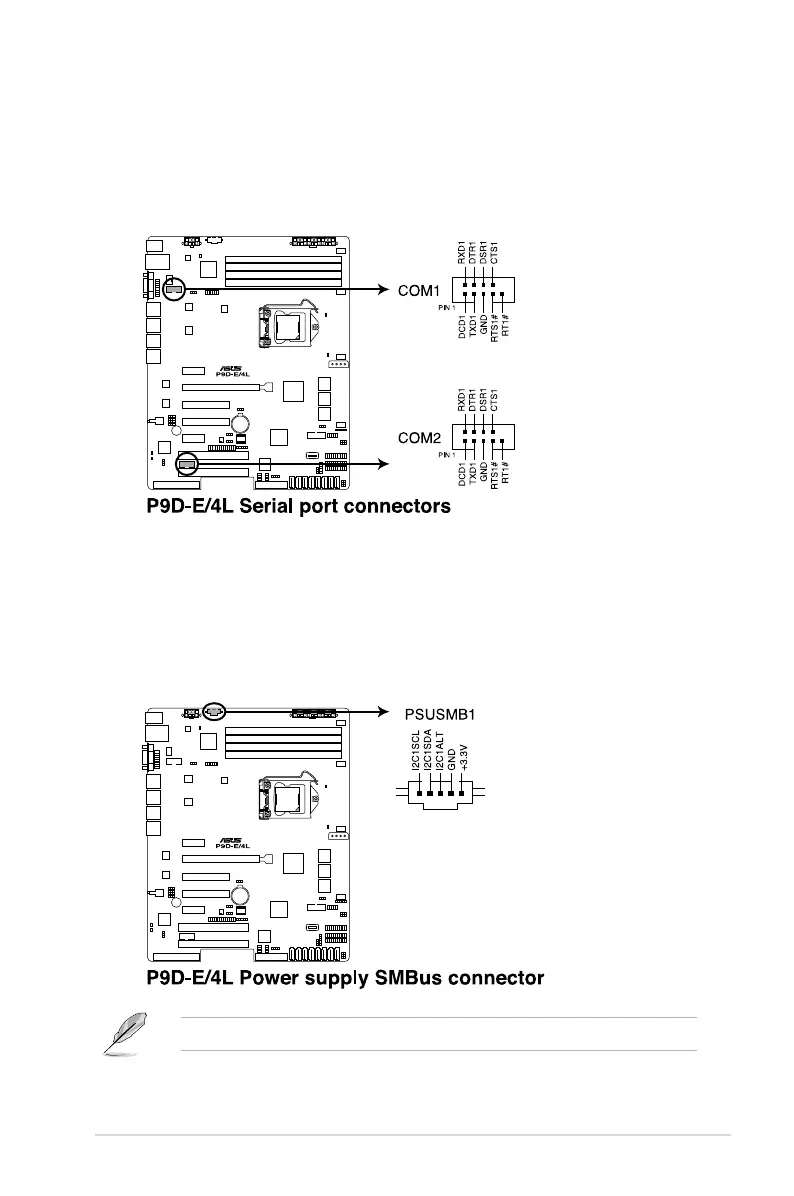

9. Serial port connectors (10-1 pin COM1/COM2)
These connectors are for the serial COM ports. Connect the serial port module cable
to one of these connectors, then install the module to a slot opening at the back of the
system chassis.
10. Power Supply SMBus connector (5-pin PSUSMB1)
This connector allows you to connect SMBus (System Management Bus) to the power
supply unit to read PSU information. Devices communicate with an SMBus host and/or
other SMBus devices using the SMBus interface.
This connector functions only when you install the ASUS ASMB7.

Asus P9D-E/4L Specifications

General

USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1, 2
Maximum UDIMM memory	32 GB
Supported DIMM module capacities	2GB, 4GB, 8GB
TPM connector	Yes
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
PCI Express x8 (Gen 2.x) slots	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2300
On-board graphics card memory	32 MB
Cables included	SATA, USB-SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1150 (Socket H3)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Motherboard chipset	Intel® C224
Motherboard form factor	ATX
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
