2-4 Chapter 2: Setup
2.4 Adjusting the monitor
• For optimal viewing, we recommend that you look at the full face of the
monitor, then adjust the monitor to the angle that is most comfortable for you.
• Hold the stand to prevent the monitor from falling when you change its angle.

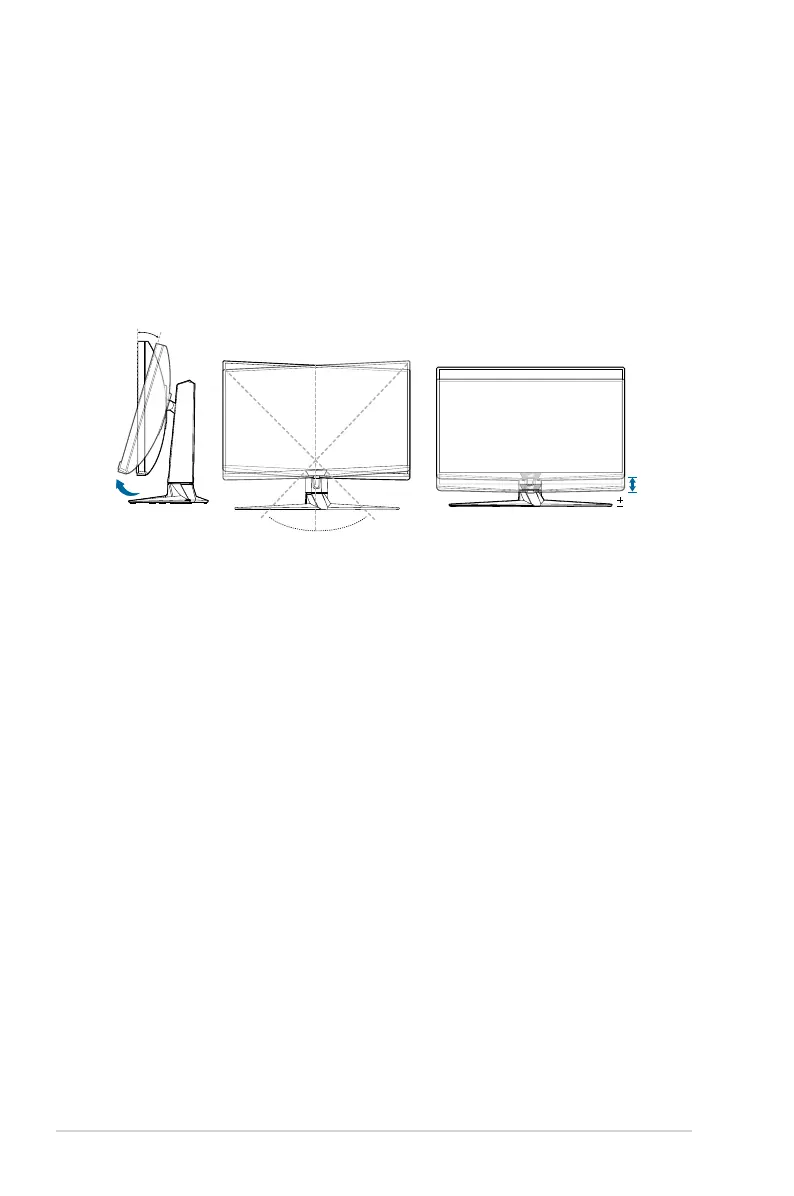

• You can adjust the monitor’s angle from +20˚ to -5˚, and it allows 25˚ swivel
adjustment from either left or right. You can also adjust the monitor’s height
within +/- 70 mm.
70mm
25°
0°
25°
- 5° ~ + 20°
(Tilt) (Swivel) (Height adjustment)
