Chapter 4: Motherboard Information
4-22

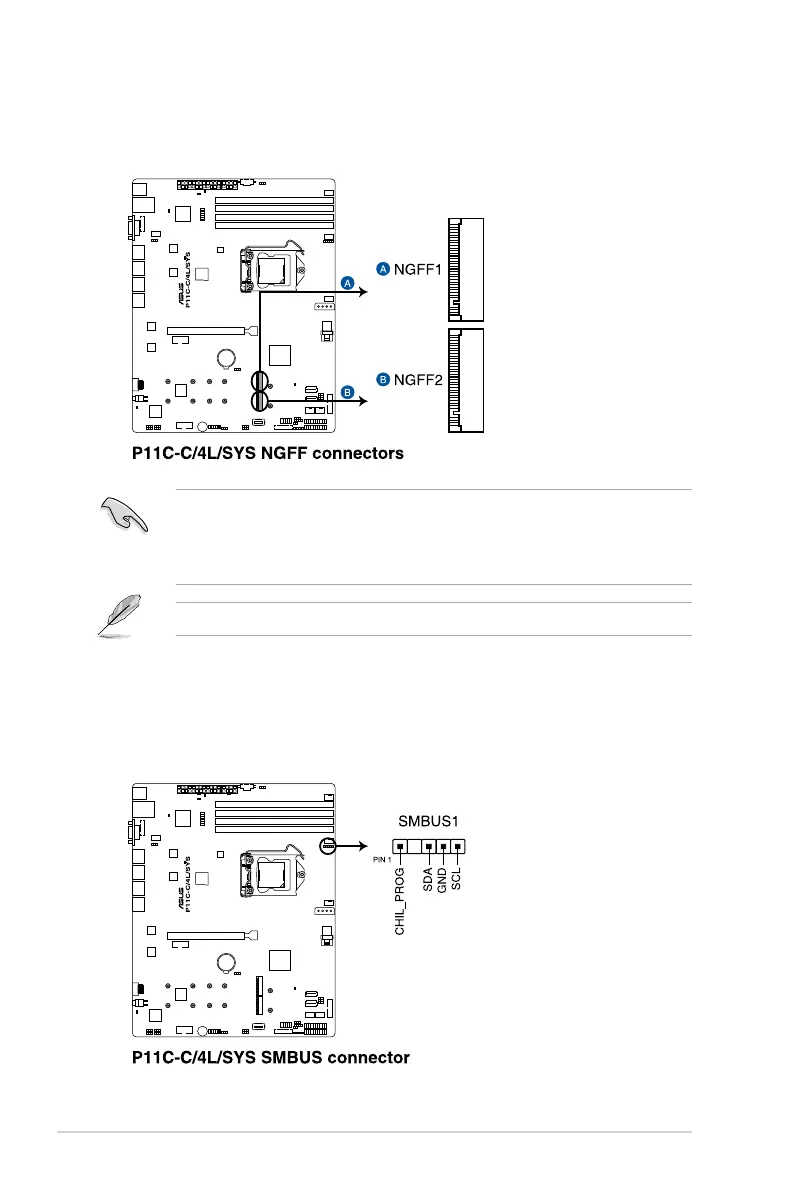

17. M.2 (NGFF) connector (NGFF1-2)
These connectors allow you to install M.2 devices.
The M.2 (NGFF) device is purchased separately.
18. System Management Bus (SMBUS) connector (5-1 pin SMBUS1)
This connector controls the system and power management-related tasks. This
connector processes the messages to and from devices rather than tripping the
individual control lines.
• This connector supports type 2242/2260/2280/22110 devices on both PCI-E and
SATA interface.
• When the M.2 connector is operating in SATA mode, SATA connector 5 and 6
(SATA 6 Gbps_5-6) will be disabled.
