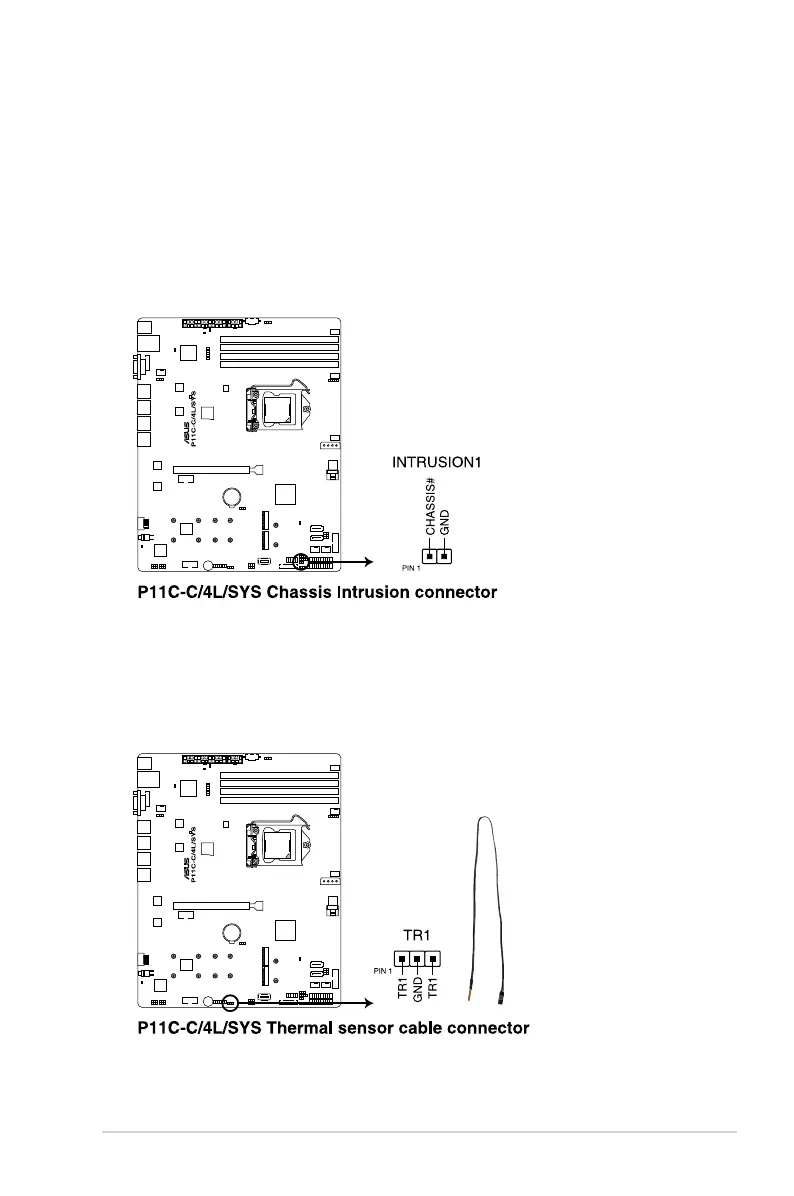

19. Chassis intrusion connector (2-pin INTRUSION1)
This connector is for a chassis-mounted intrusion detection sensor or switch. Connect
one end of the chassis intrusion sensor or switch cable to this connector. The chassis
intrusion sensor or switch sends a high-level signal to this connector when a chassis
component is removed or replaced. The signal is then generated as a chassis intrusion
event.
By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper
cap. Remove the jumper caps only when you intend to use the chassis intrusion
detection feature.
20. Thermal sensor cable connector (3-pin TR1)
This connector allows you to connect a thermal sensor cable that is used for monitoring
temperature. Connect the thermal sensor cable to the connector and place its probe to
the device that you want to monitor.
