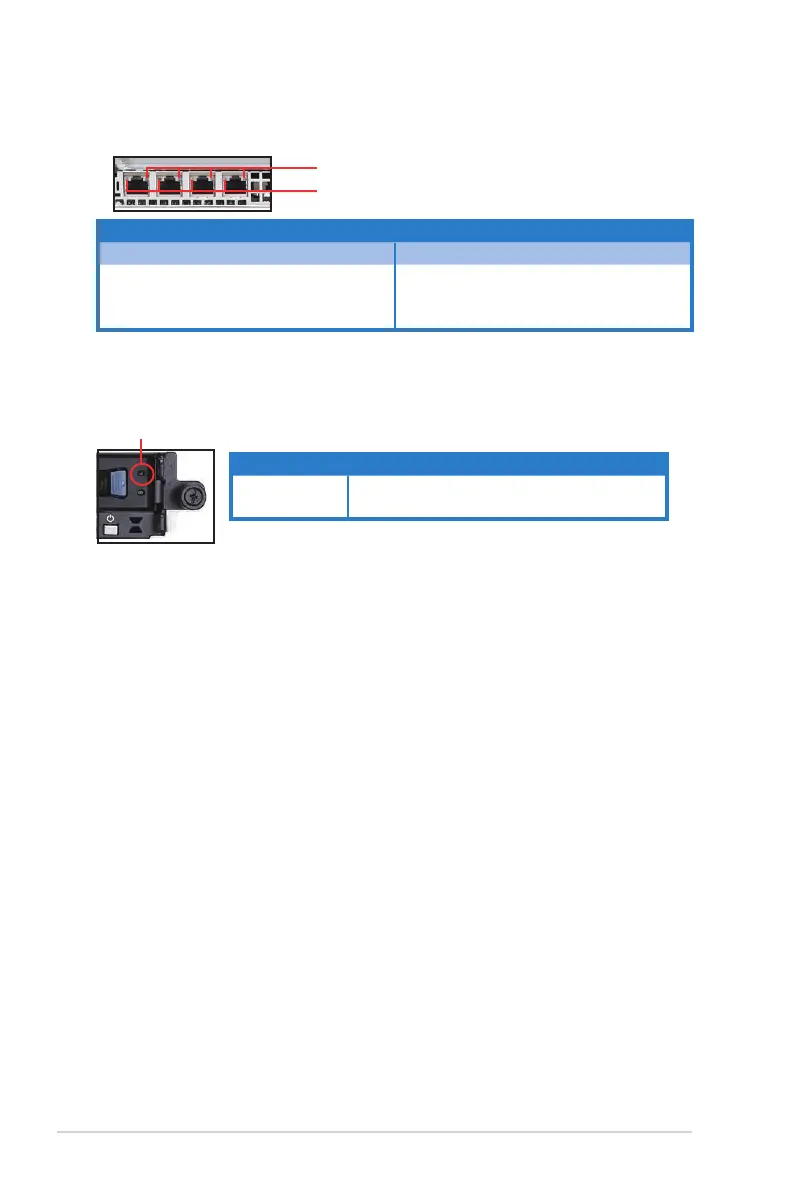

1.7.2 LAN (RJ-45) LEDs
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1.7.3 HDD status LED
HDD status LED
SATA HDD LED Description
GREEN This installed Serial ATA HDD is in good condition
OFF HDD failure or no HDD is installed
SPEED LED
ACT/LINK LED
