2-7ASUS RS300-E7/PS4

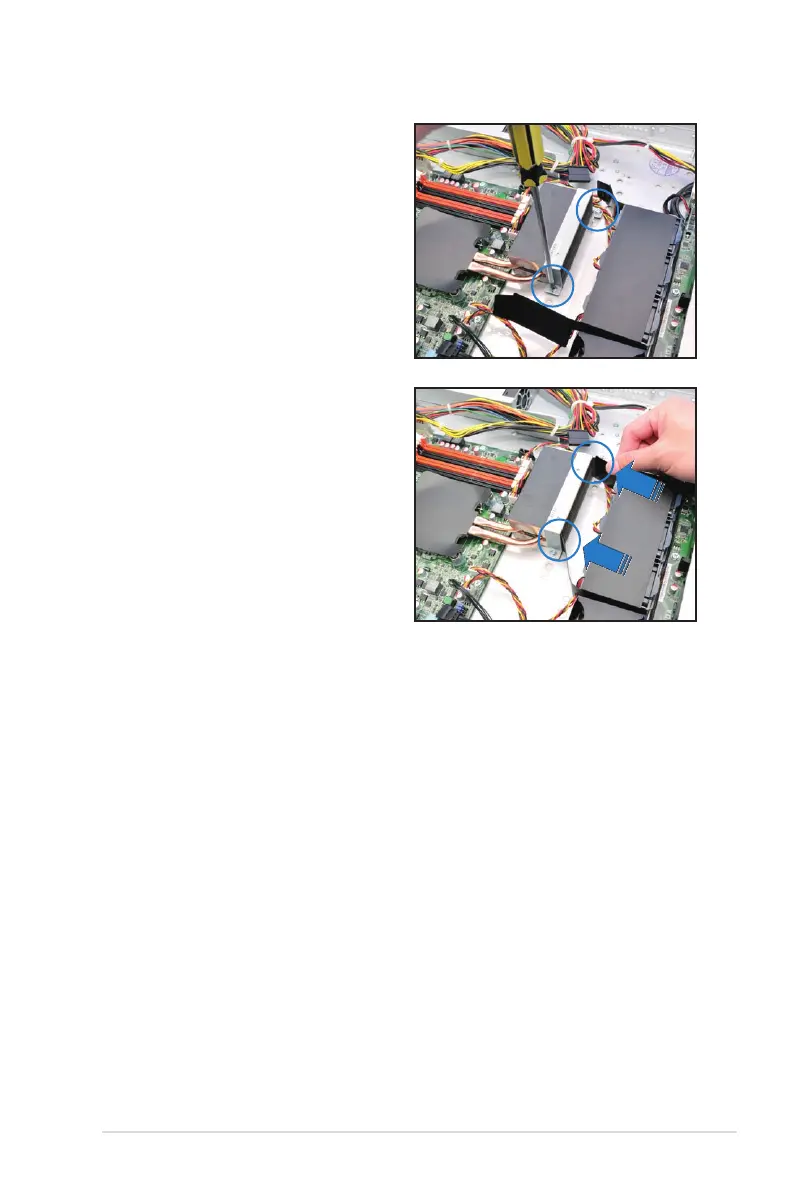

4. Secure the heat pipe and air duct
to the server with two screws.
5. Insert the two tips of the system
fan mylar into the CPU heatsink, as
shown in the right gure.
