2-19ASUS RS300-E7/PS4

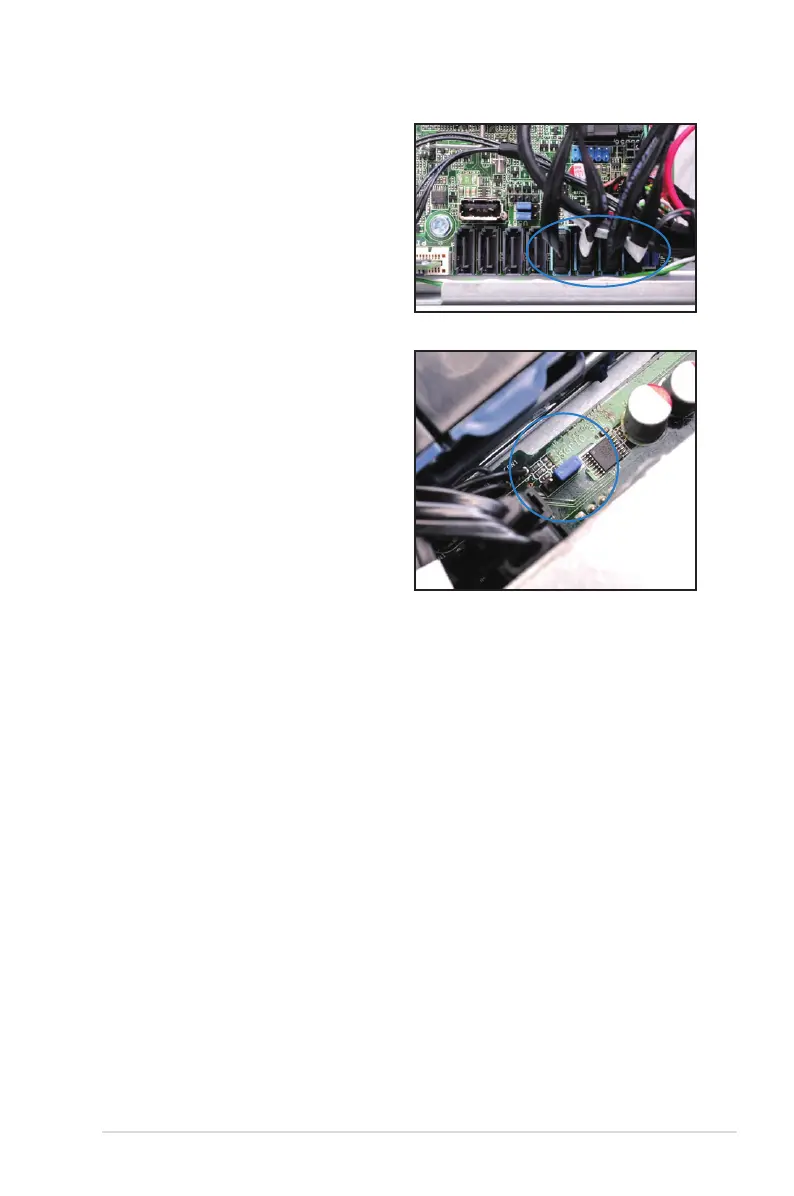

5. Connect the SATA/SAS cables to
the onboard SAS1–4 connectors
(blue).
6. Move the
SGPIO_SEL1
jumper on
the SATA/SAS backplane to 2–3.
