Chapter 4: Motherboard information4-8

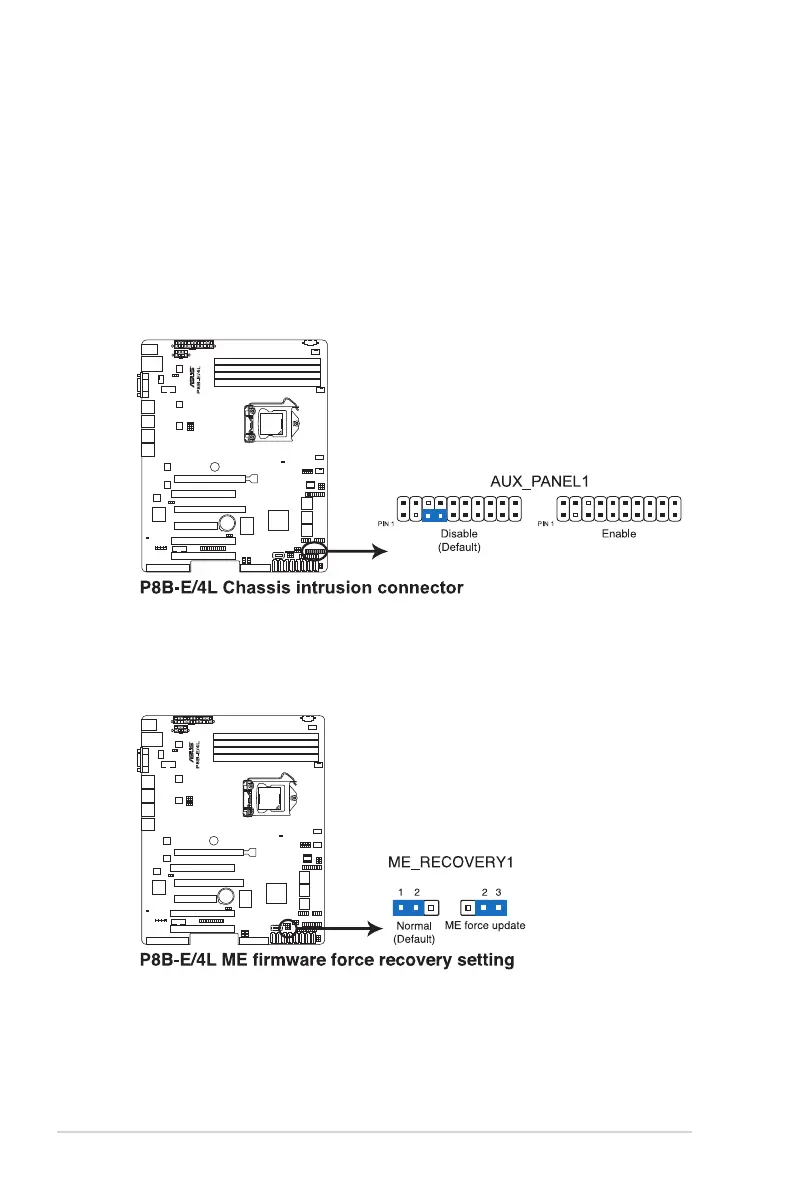

7. Chassis intrusion connector (2 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch.
Connect one end of the chassis intrusion sensor or switch cable to this
connector. The chassis intrusion sensor or switch sends a high-level signal to
this connector when a chassis component is removed or replaced. The signal
is then generated as a chassis intrusion event.
By default , the pin labeled “Chassis Signal” and “Ground” are shorted with
a jumper cap. Remove the jumper caps only when you intend to use the
chassis intrusion detection feature.
8. MErmwareforcerecoverysetting(3-pinME_RECOVERY1)
This jumper allows you to quickly recover the Intel Management Engine (ME)
rmware when it becomes corrupted.
