ASUS RS300-E7/PS4 4-13

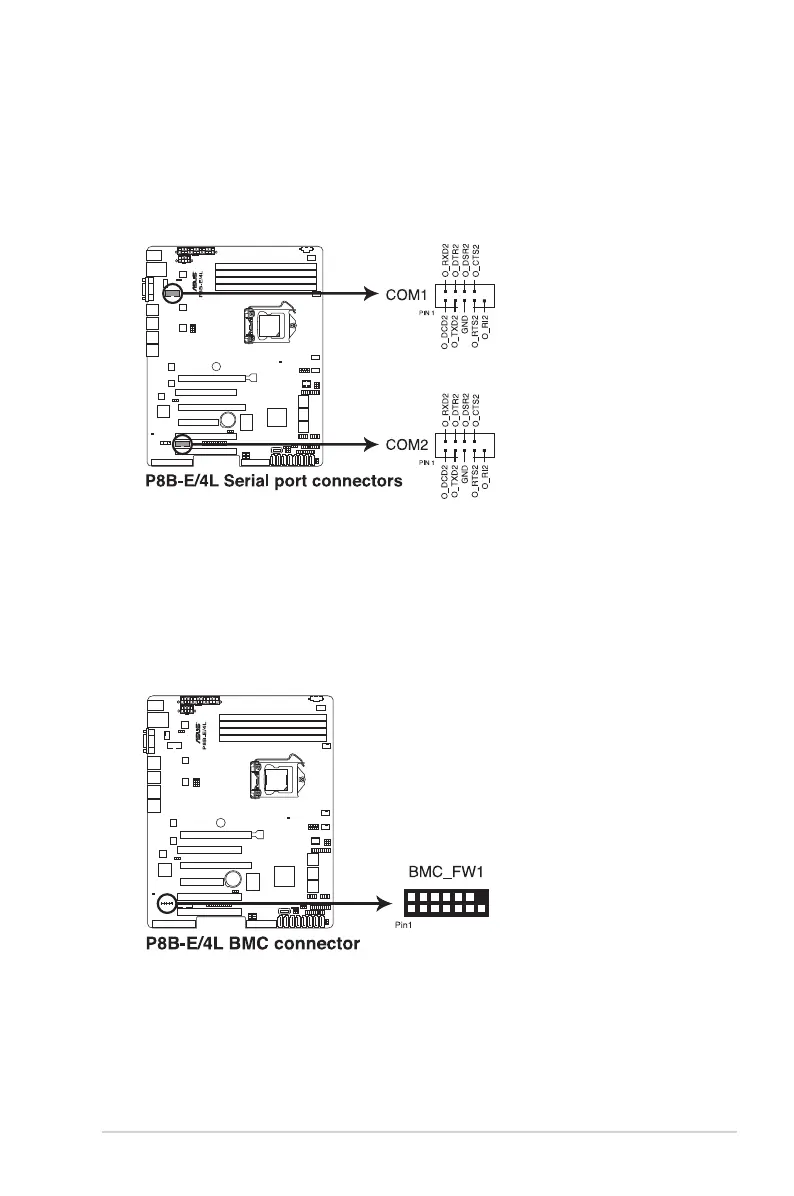

8. Serial port connectors (10-1 pin COM1/COM2)
Thess connectors are for the serial (COM) ports. Connect the serial port
module cable to one of these connectors, then install the module to a slot
opening at the back of the system chassis.
9. BMC header (BMC_FW1)
The BMC connector on the motherboard supports an ASUS
®
Server
Management Board 5 Series (ASMB5).
