4. Connecting Speakers and Peripherals
4.1 Connecting to Strix Control Box (Strix Raid DLX/
PRO only)

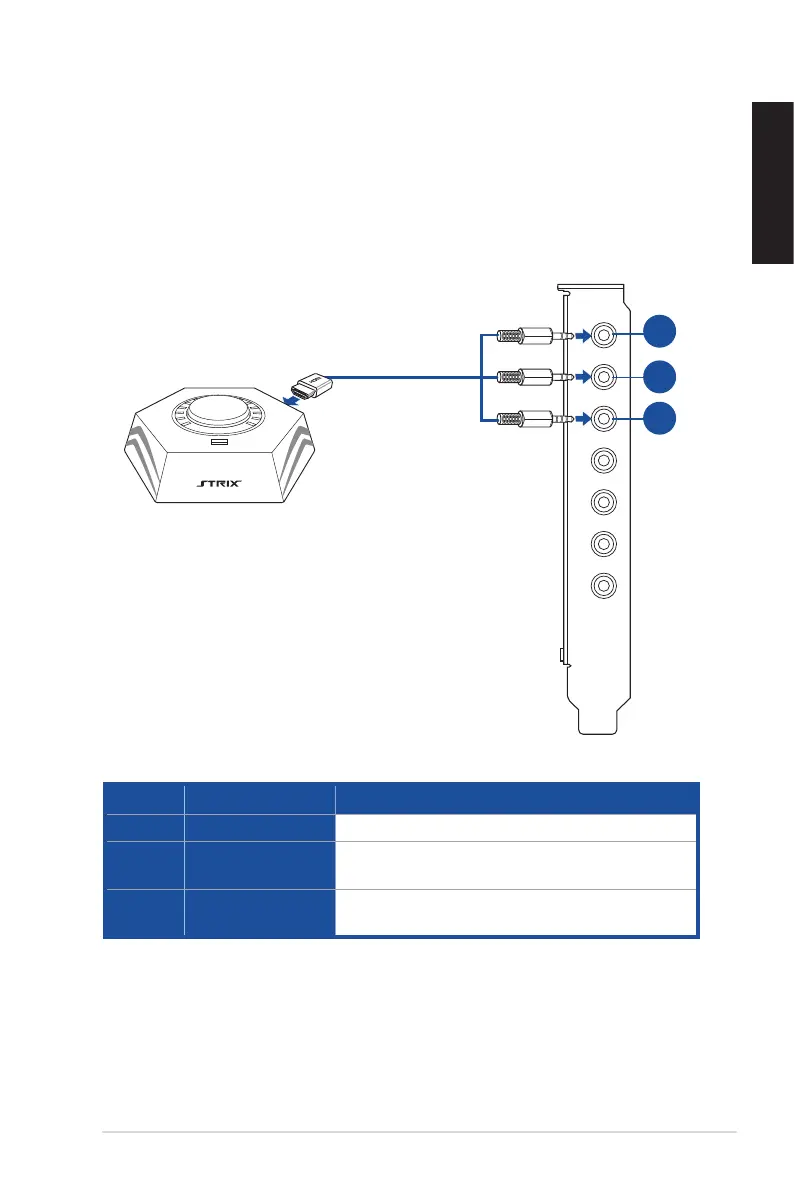

4.1.1 Connecting Strix Control Box (Strix Raid DLX/PRO only)
No. Items Description
1. Box link Connect Strix control box directly to this Box link port .
2. Microphone Input
Port
Connect Strix control box directly to the microphone
input port .
3. Headphone Output
Port
Connect Strix control box directly to the headphone
output port.
1
2
3
