2-5ASUS TW300-E5/PI4

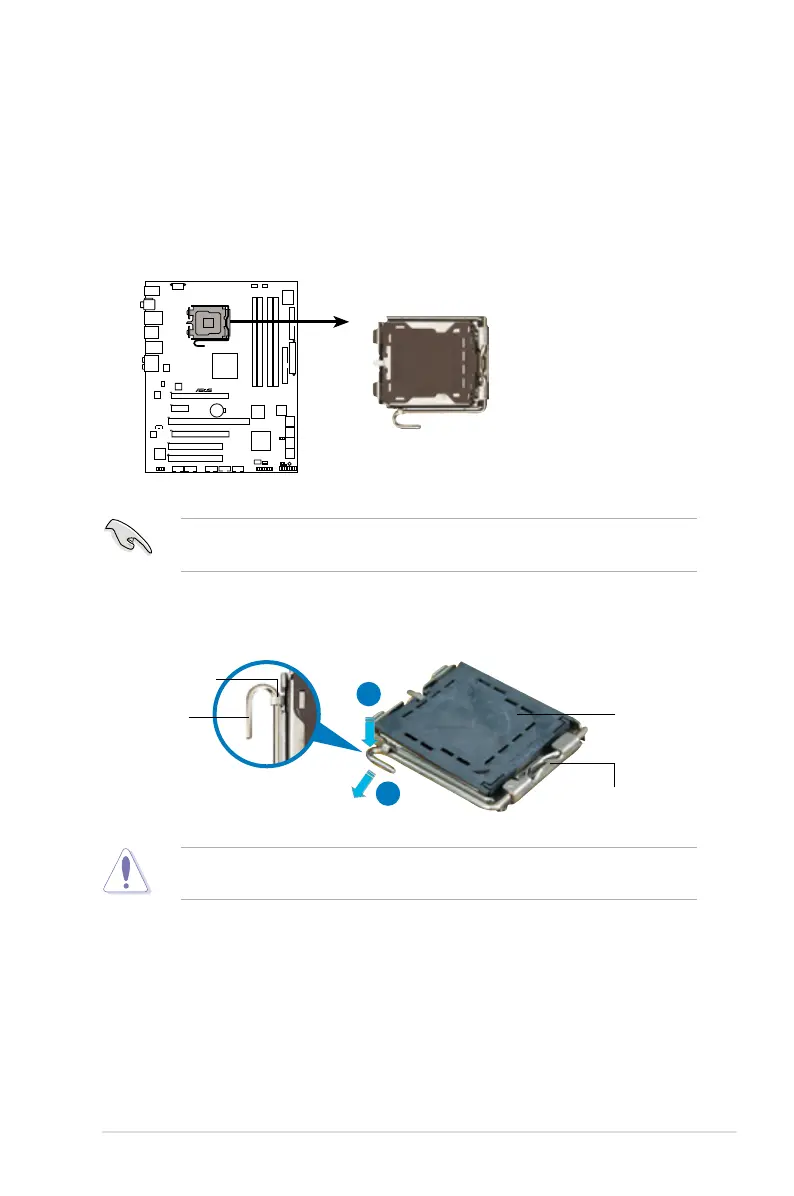

2.3.1 Installing the CPU
To install a CPU:
1. Locate the CPU socket on the motherboard.
2.3 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA775 socket designed for the
Intel
®
Xeon 3300 / 3200 / 3100 / 3000 Series processor in the 775-land package
2. Press the load lever with your thumb (A), then move it to the left (B) until it is
released from the retention tab.
Retention tab
Load lever
This side of the socket
box should face you.
PnP cap
A
B
To prevent damage to the socket pins, do not remove the PnP cap unless you
are installing a CPU.
Before installing the CPU, make sure that the socket box is facing towards you
and the load lever is on your left.
P5E WS PRO
®
P5E WS Professional CPU Socket 775
