Chapter 2: Hardware setup2-24

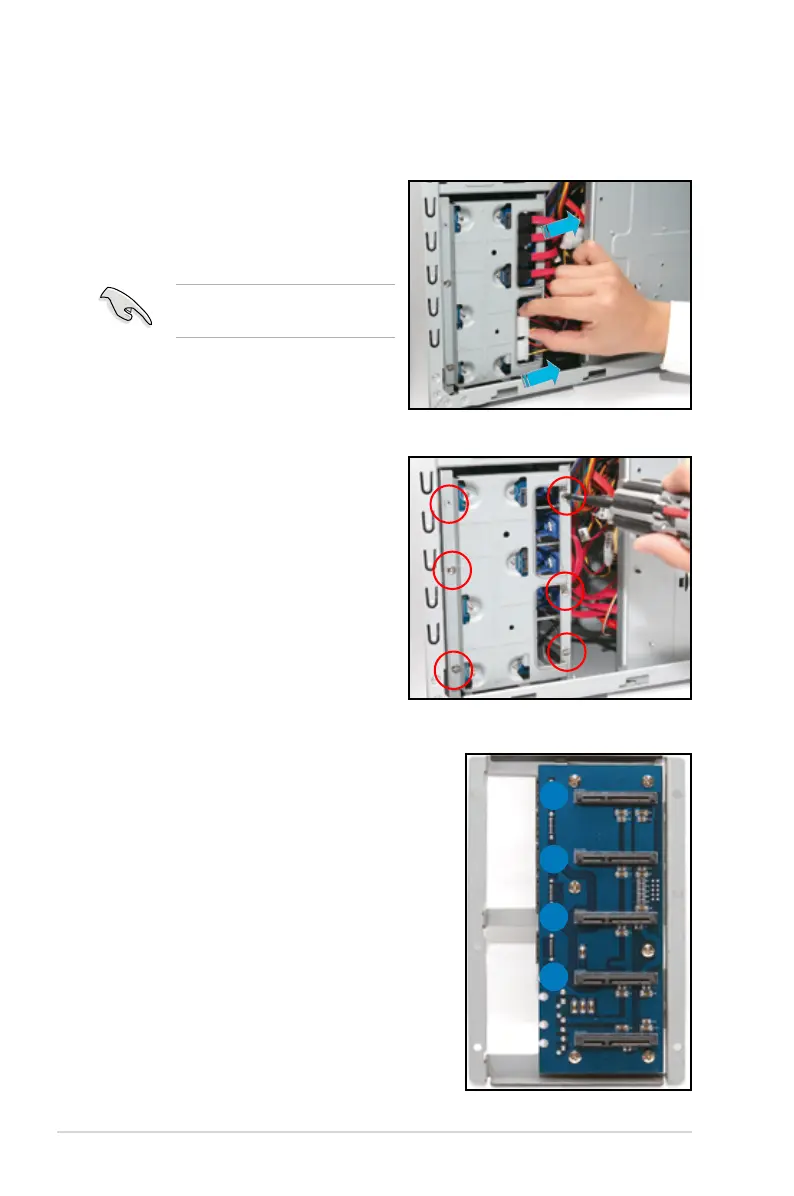

To remove the SATA backplane
1. Remove the right side cover rst.
Disconnect all SATA cables and
power cables connected to the
SATA backplane.
2.8.3 Removing the SATA backplane
Remove all hard drives before
removing the SATA backplane.
2. Remove all the six screws on the
back of the SATA backplane holder
with a screwdriver.
3. Take out the SATA backplane with
the backplane holder and place on
a at surface. The TW300-E5/PI4
Workstation uses only the four SATA
HDD connectors labelled DEVICE1-
4.
4
3
2
1
