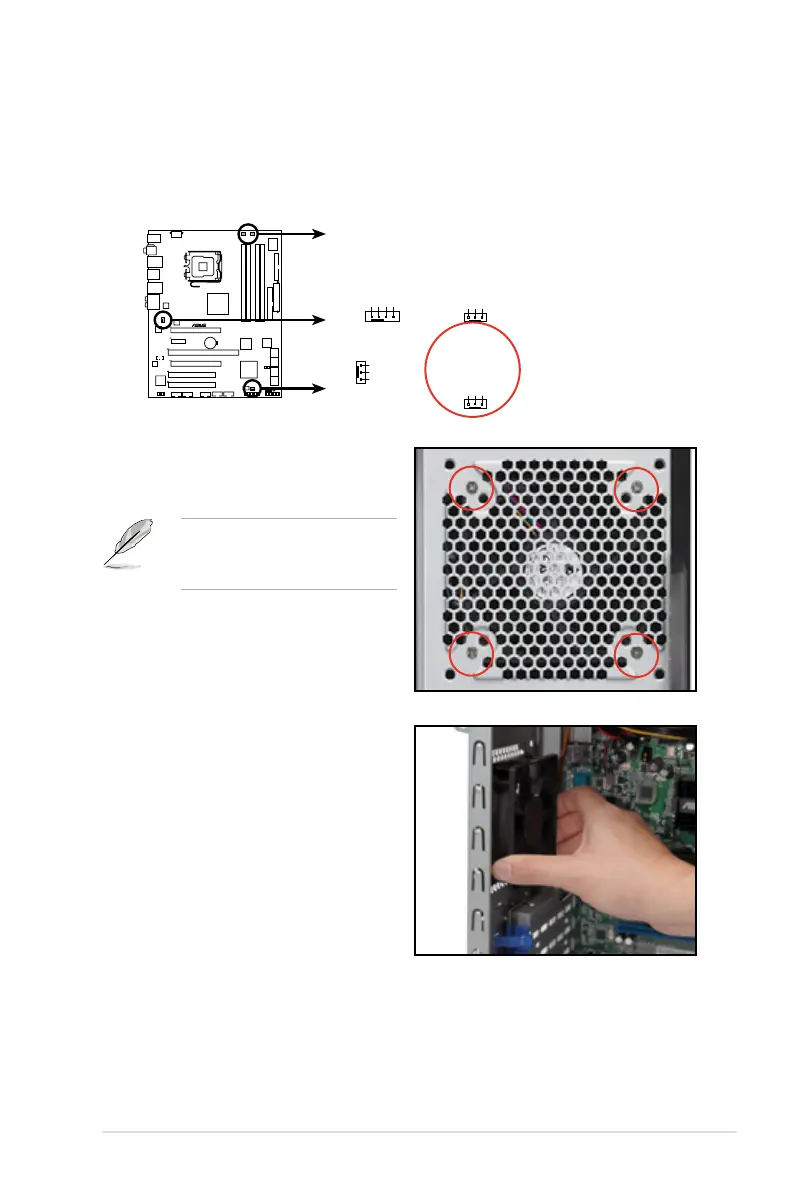

2.8.2 Removing the system fan
To remove the system fan
1. Disconnect the chassis fan cable from the CHA_FAN1 connector on the
motherboard.
2. Locate and remove four system fan
screws at the rear panel. Keep the
screws for later use.
Hold the system fan with one
hand while removing the system
screws.
3. Remove the system fan, and then
set aside.
P5E WS PRO
®
P5E WS Professional Fan connectors
CPU_FAN
CHA_FAN1
GND
Rotation
+12V
CHA_FAN2
PWR_FAN
GND
Rotation
+12V
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
GND
Rotation
+12V
