A certain height under the worktop is necessary if the hob is
installed above an oven. This height under the worktop
depends on the following:
- Worktop thickness;
- Installed height of the hob (48 mm);
- Height of oven at highest point (not including the
operating panel).
The required height under the worktop is the height of the
oven at the highest point plus the installed height of the hob
less the worktop thickness.

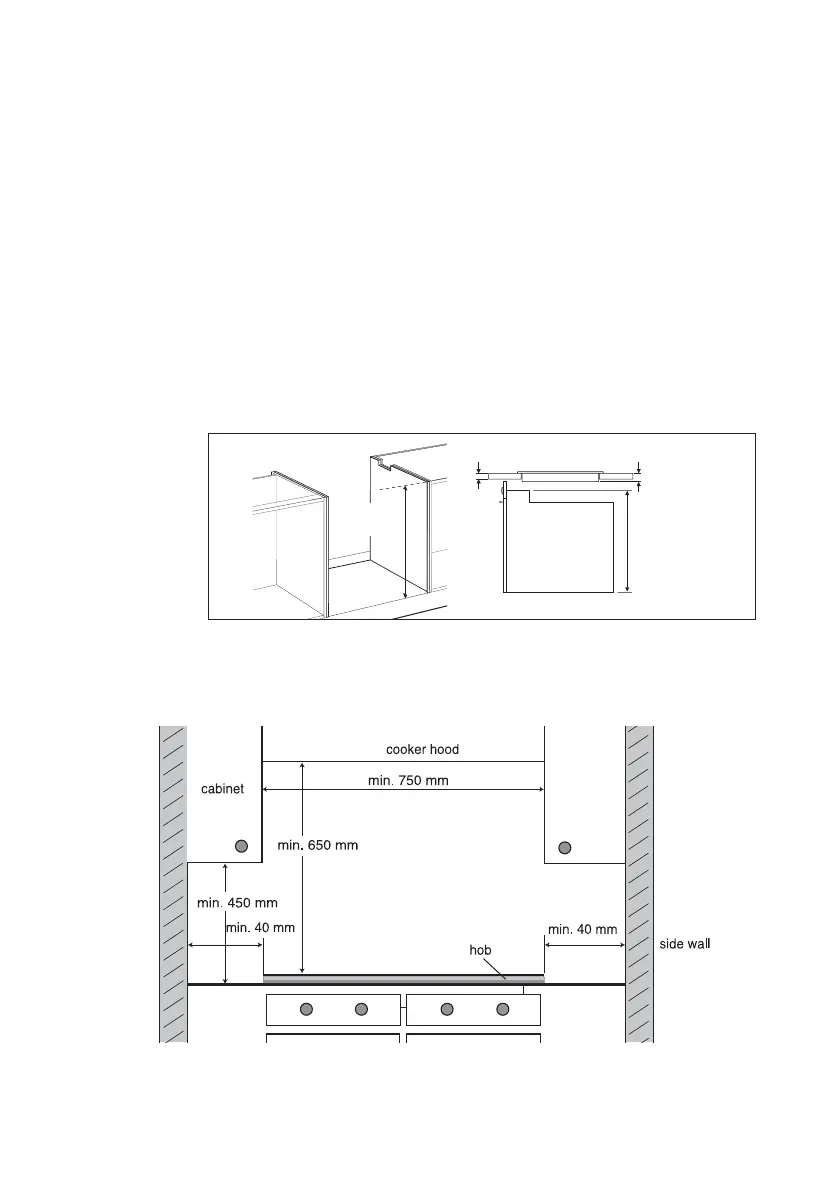

Space to be left free around the appliance
Height of oven
at highest point
Worktop thickness
Installed height
of the hob
Height under
the worktop
