7. External Output

WARNING
◇ Turn off the power (DC24V) when connecting the cable from the
terminal.
The CM-BASEα(A) transmits data via 4-20mA signals. The CM-BASEα(D) transmits data
to a computer via RS-232C.

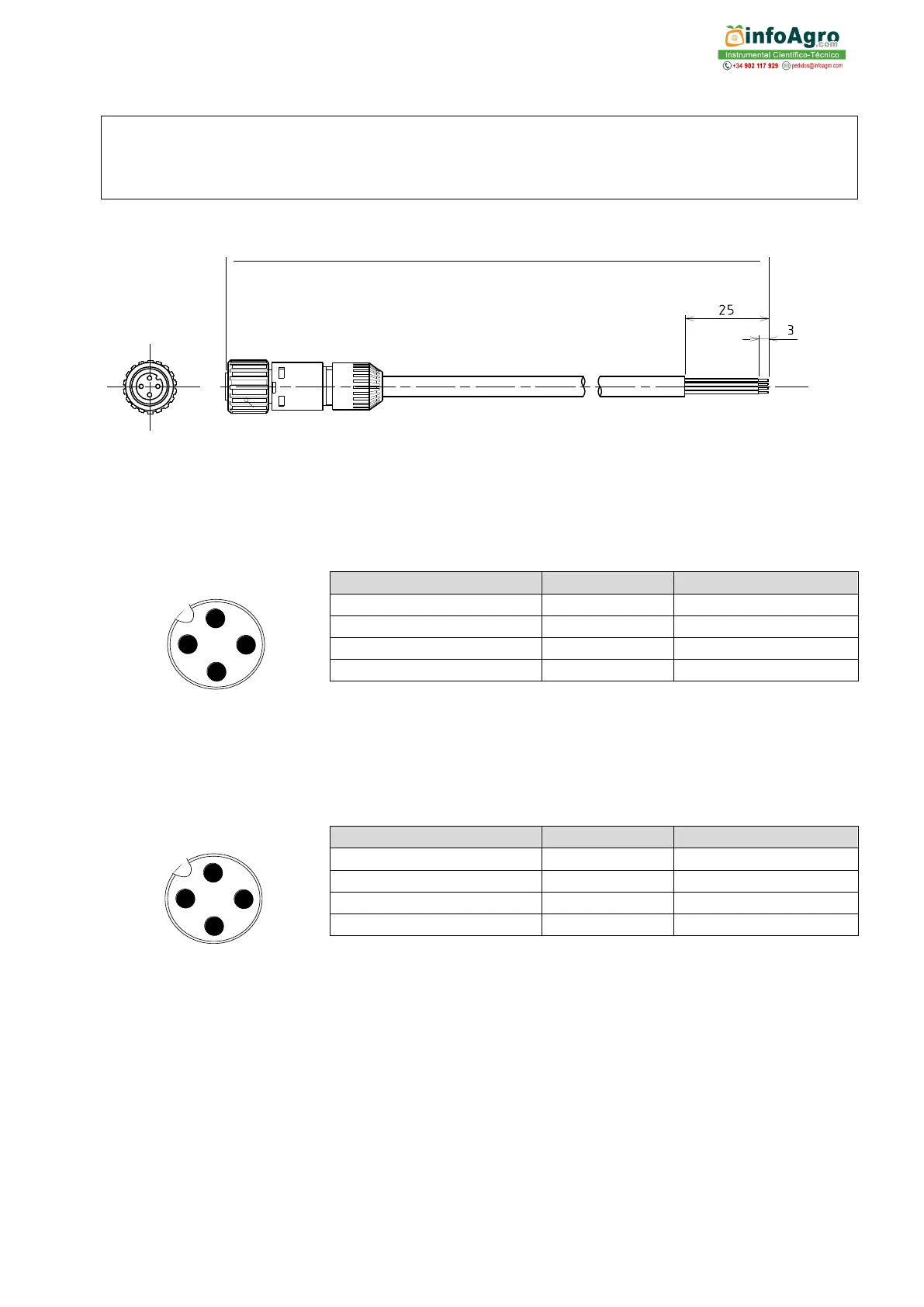

(1) CM-BASEα(A)
The provided cable connects to the base of the CM-BASEα(A), and it provides power
(DC24V) to the instrument and transmits Brix data via DC 4-20mA. Brix values ranging
from -2.0 to 33.5% are communicated as DC ranging from 4 to 20mA respectively.
Connector pin number
Code color
Signal name
1
Red
DC24V
2
Black / White
DC4 to 20mA GND
3
Black
DC24V GND
4
Red / White
DC4 to 20mA
(2) CM-BASEα(D)
The provided cable connects to the base of the CM-BASEα(D), and it provides power
(DC24V) to the instrument and transmits Brix and temperature data via RS-232C.
Connector pin number
Code color
Signal name
1
Red
DC24V
2
Black / White
RS-232C GND
3
Black
DC24VGND
4
Red / White
RS-232C
Communication parameters
BAUDRATE : 2400bps
DATA LENGTH : 7bit
PARITY : Even
STOP BIT : 1bit
Transmit data
aa.a,bb.b
aa.a represents Brix value. The Brix display range is
"-2.0 to 33.5".
When Brix value is less than -2.1, LL.L will be
displayed.
When Brix value is more than 33.6, HH.H will be
displayed.
bb.b represents temperature.
3
4
1
2
3
4
1
2
