Wall installation
continued from page 15

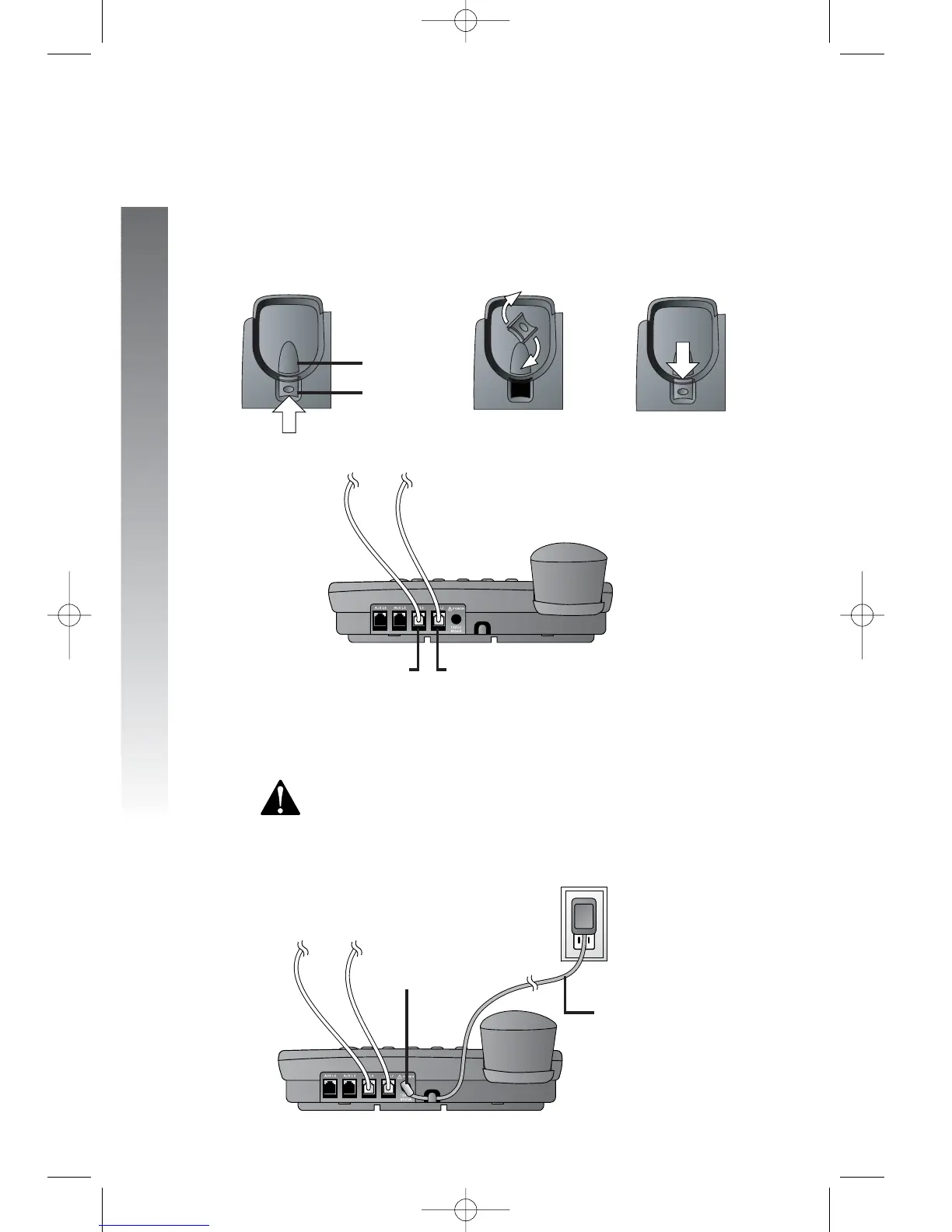

2. Reverse the handset tab.
Hold down the switchhook, then pull out the handset tab and
rotate it 180 degrees. Push the handset tab down into the
grooves so it settles into position.
3. Connect the telephone line cords to the telephone as shown.
4. Connect the handset cord.
Plug one end of the coiled handset cord into the jack on the left side
of the phone. Plug the other end into the handset and hang up.
5. Connect the power adapter to the telephone.
Use only the power adapter provided with this product.
To obtain a replacement, call
1 (800) 222–3111.
Plug one end of the power adapter into the jack labeled
POWER on the back of the phone. Plug the power adapter into a
standard electrical outlet not controlled by a wall switch.
16
Installation
Installation
Standard
electrical
outlet
Power adapter
Power jack
Switchhook
Handset tab
L1/L2 jack
L3/L4 jack
