Product Manual—Wireless Video Bridge Gen2
II. HARDWARE INFORMATION
A. WIRELESS VIDEO BRIDGE
1. Front Panel
The front panel contains:
• Multicolor status indicator LED
The WVB2 is to be installed vertically (it is not to be placed in a horizontal position).
The WVB2 can be wall-mounted using the mounting bracket provided. When using the mounting bracket, the
WVB2 should remain positioned upright (not upside down). See page 10 for mounting instructions.

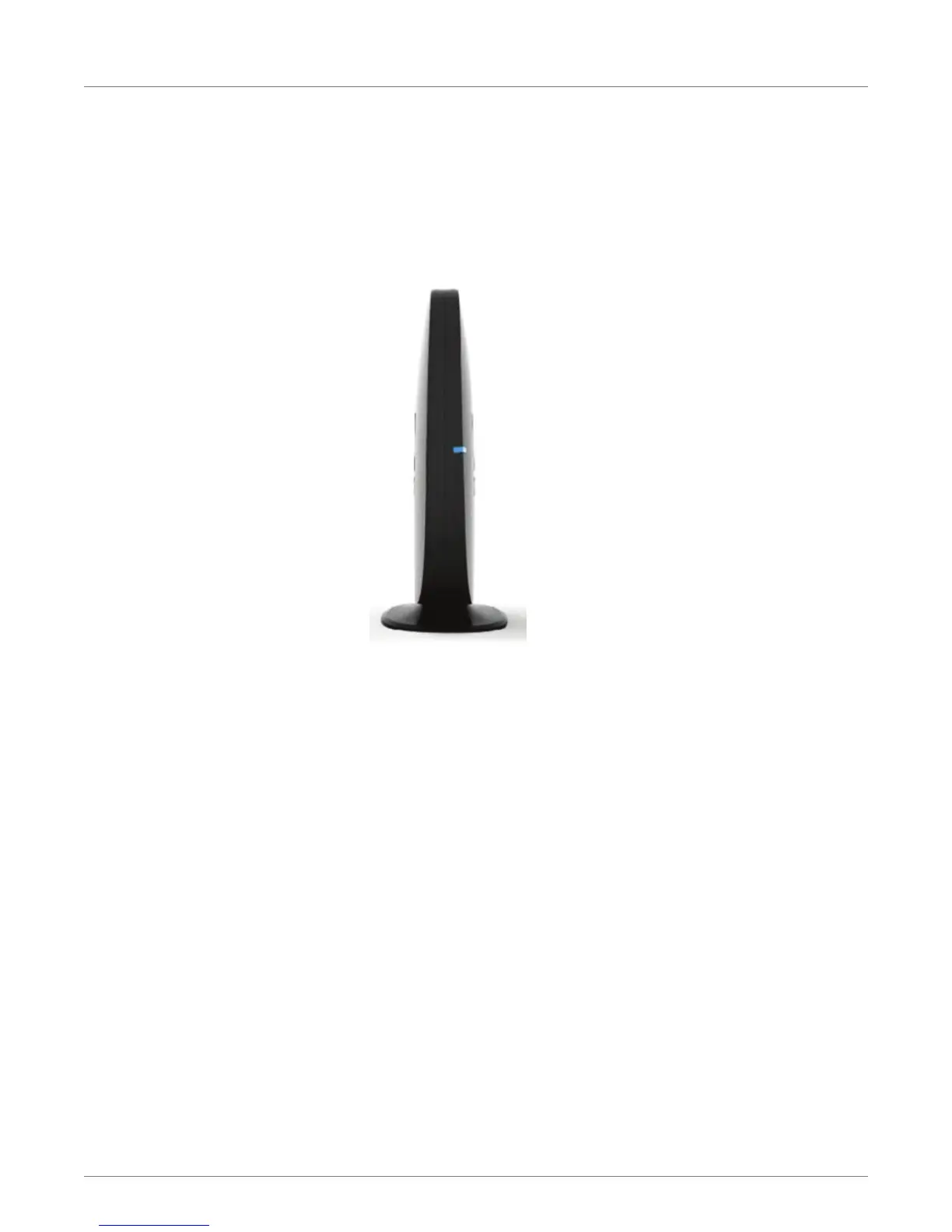

FIGURE 1: WVB2—FRONT PANEL
