Cartridge Interface
The cartridge interface is a 30 pin edge connector.

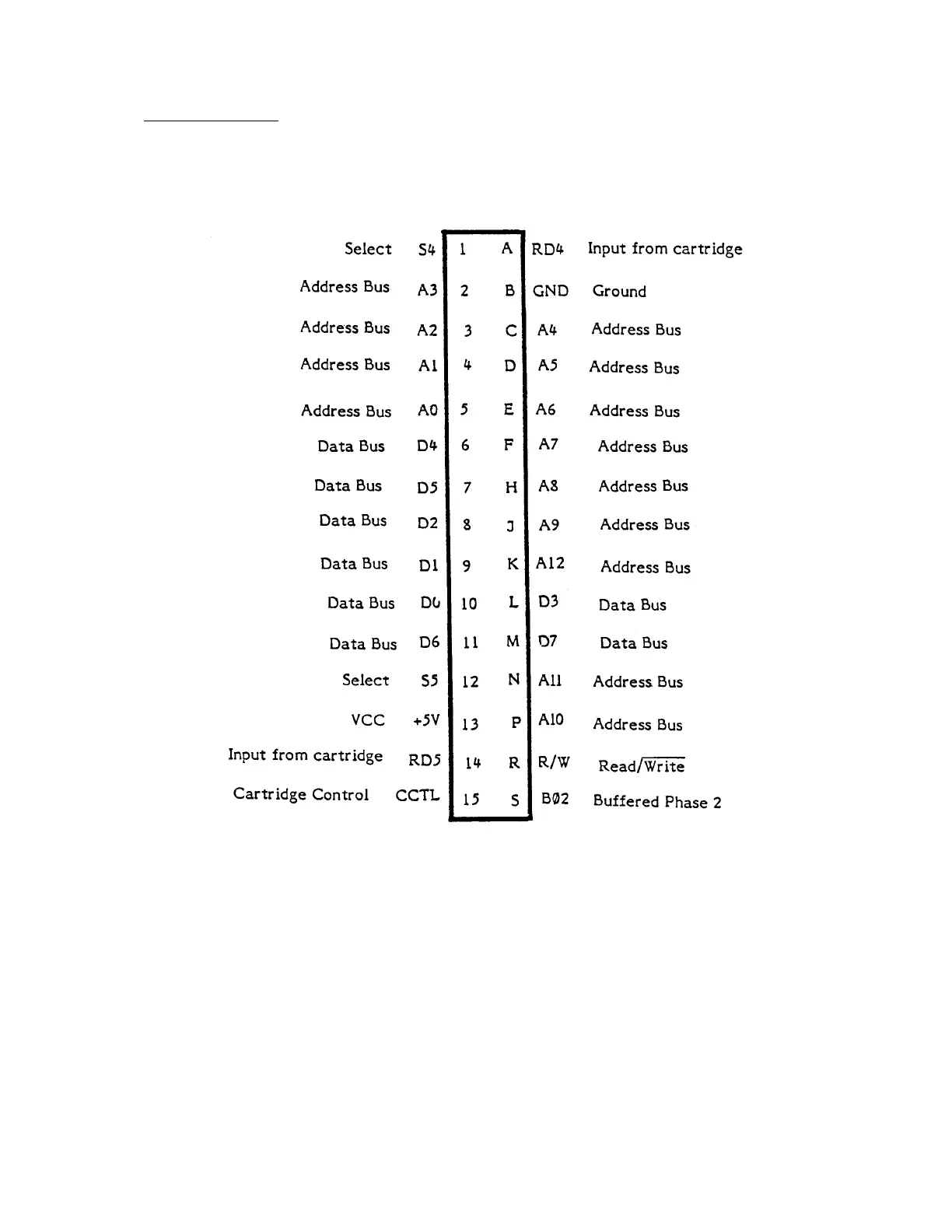

Figure 1-13 is an illustration of the cartridge interface pin assignments.
Figure 1-13. Cartridge Interface Pin Assignments (from left side of 1200XL)
1200XL Home Computer
Field Service Manual 1-15
