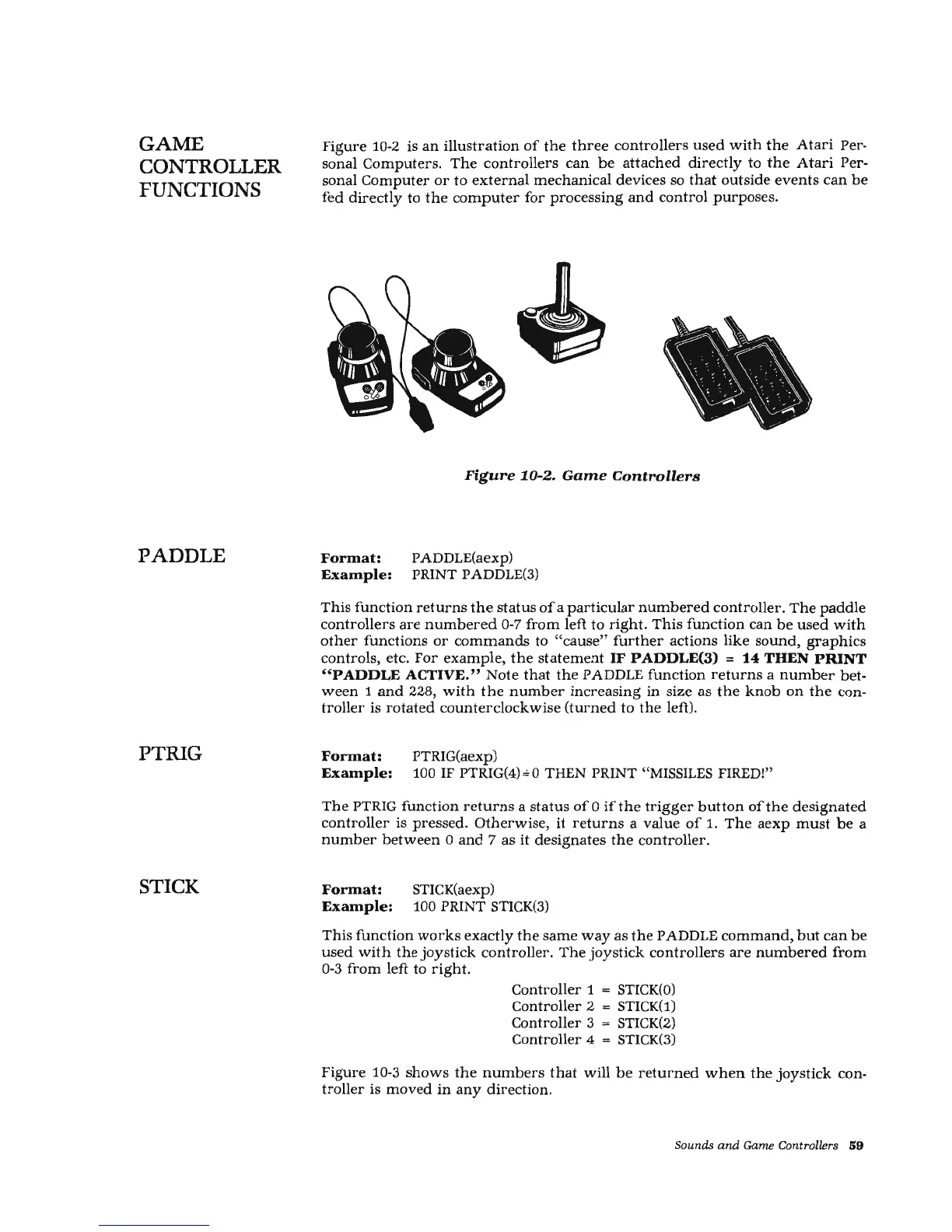

Atari 800 Basic Reference Manual

GAME
CONTROLLER
FUNCTIONS
PADDLE
PTRIG
STICK
Figure 10-2 is an illustration of the three controllers used with the Atari Per-
sonal Computers. The controllers can be attached directly to the Atari Per-
sonal Computer or to external mechanical devices so that outside events can be
fed directly to the computer for processing and control purposes.
Format:
Example:
Figure 10-2. Game Controllers
P ADDLE(aexp)
PRINT P ADDLE(3)
This function returns the status of a particular numbered controller. The paddle
controllers are numbered 0-7 from left to right. This function can be used with
other functions or commands to "cause" further actions like sound, graphics
controls, etc. For example, the statement IF PADDLE(3) = 14 THEN PRINT
"PADDLE ACTIVE." Note that the PADDLE function returns a number bet-
ween 1 and 228, with the number increasing in size as the knob on the con-
troller is rotated counterclockwise (turned to the left).
Format:
PTRIG(aexp)
Example: 100 IF PTRIG(4)"'0 THEN PRINT "MISSILES FIRED!"
The PTRIG function returns a status ofO ifthe trigger button ofthe designated
controller is pressed . Otherwise, it returns a value of 1. The aexp must be a
number between 0 and 7 as it designates the controller.
Format: STICK(aexp)
Example: 100 PRINT STICK(3)
This function works exactly the same way as the PADDLE command, but can be
used with the joystick controller. The joystick controllers are numbered from
0-3 from left to right.
Controller 1 = STICK(O)
Controller 2 = STICK(l)
Controller 3 == STICK(2)
Controller 4 = STICK(3)
Figure 10-3 shows the numbers that will be returned when the joystick con-
troller is moved in any direction.
Sounds and Game Controllers 59
