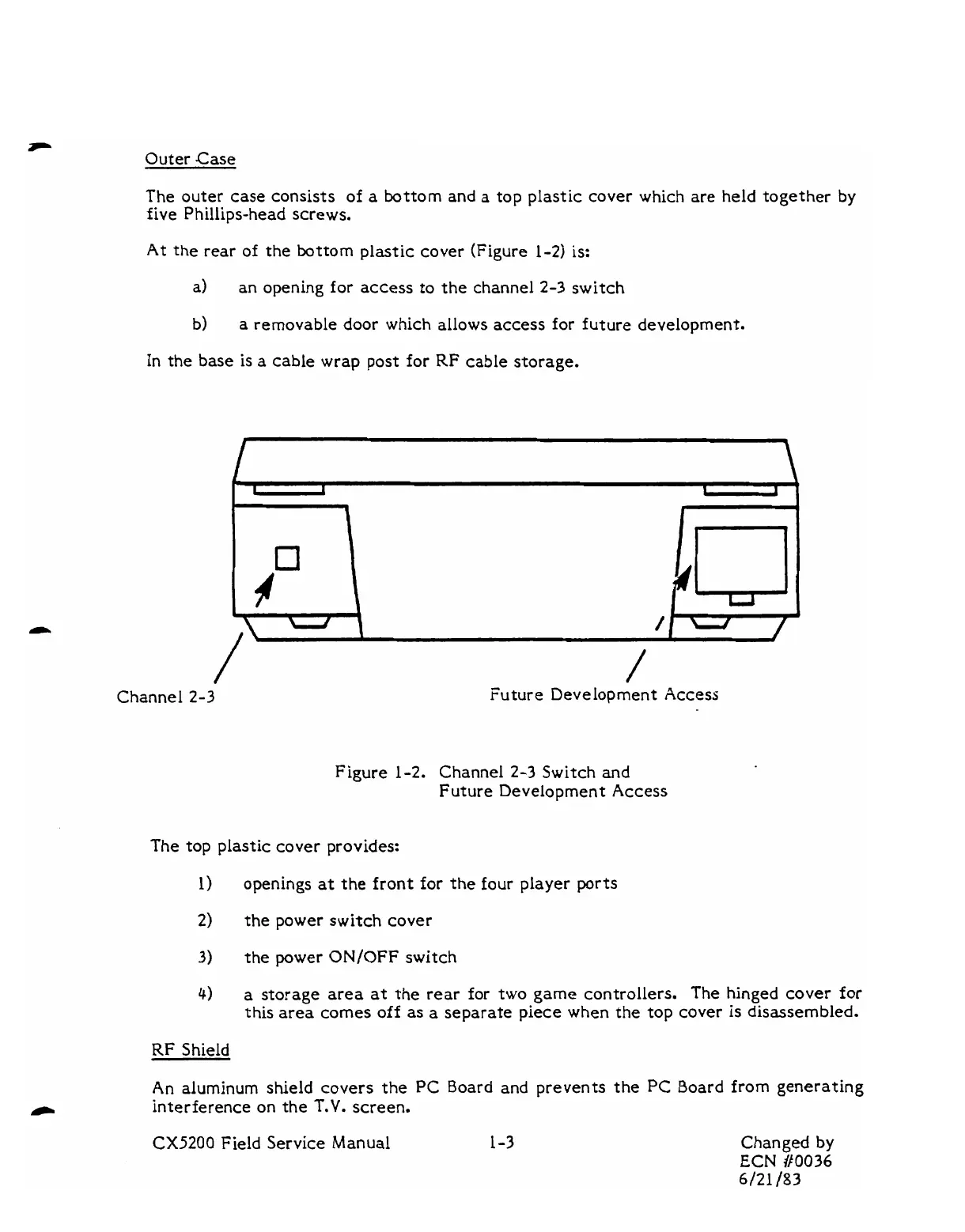

Outer
Case
The outer
case
consists of a bottom and
a
top plastic cover which are held together by
five Phillips-head screws.
At the rear of the bottom plastic cover (Figure
1-2)
is:
a)
an opening for
access
to the channel
2-3
switch
b)
a
removable door which allows
access
for future development.
In the base
is
a
cable wrap post for
RF
cable storage.
I
I
t
/
/
Channel
2-3
Future Development Access
Figure
1-2.
Channel
2-3
Switch and
Future Development Access
The top plastic cover provides:
1)
openings
at
the front for the four player ports
2)
the power switch cover
3)
the power
ON/OFF
switch
4)
a storage area
at
the rear for two game controllers. The hinged cover for
this area comes off
as
a
separate piece when the top cover is disassembled.
RF
Shield
An
aluminum shield covers the
PC
Board and prevents the
PC
Board from generating
interference on the T.V. screen.
CX5200
Field Service Manual
1-3
Changed
by
ECN
#0036
6/21 /83
