Two-Port Universal PCB differences:
-
I)
All of the 4-port universal board differences listed above are included on
the 2-port universal PCB.
2)
Ports 3 and 4 and their associated discrete components have been removed.
3)
ICs A1 2 and A1 3 have been removed.
4)
The automatic switchbox has been replaced with
a manual switchbox and
the
RF cable has been replaced with the standard RF cable.
5)
The power adaptor plugs directly into the rear of the console instead of
plugging into the switchbox.
Carrridqe
Player POI

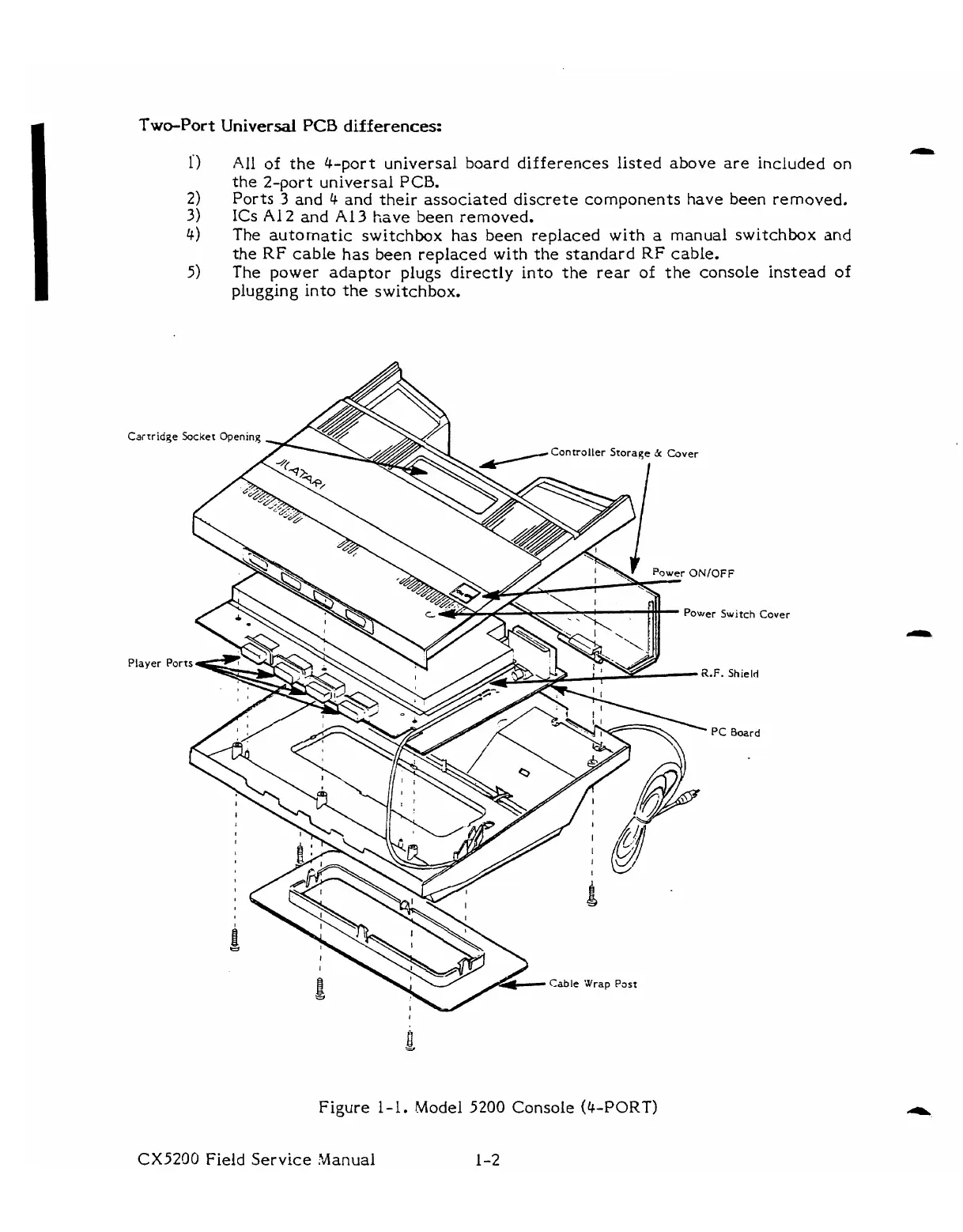

Figure 1-1. Model 5200 Console (4-PORT)
CX52C10 Field Service Manual 1-2
