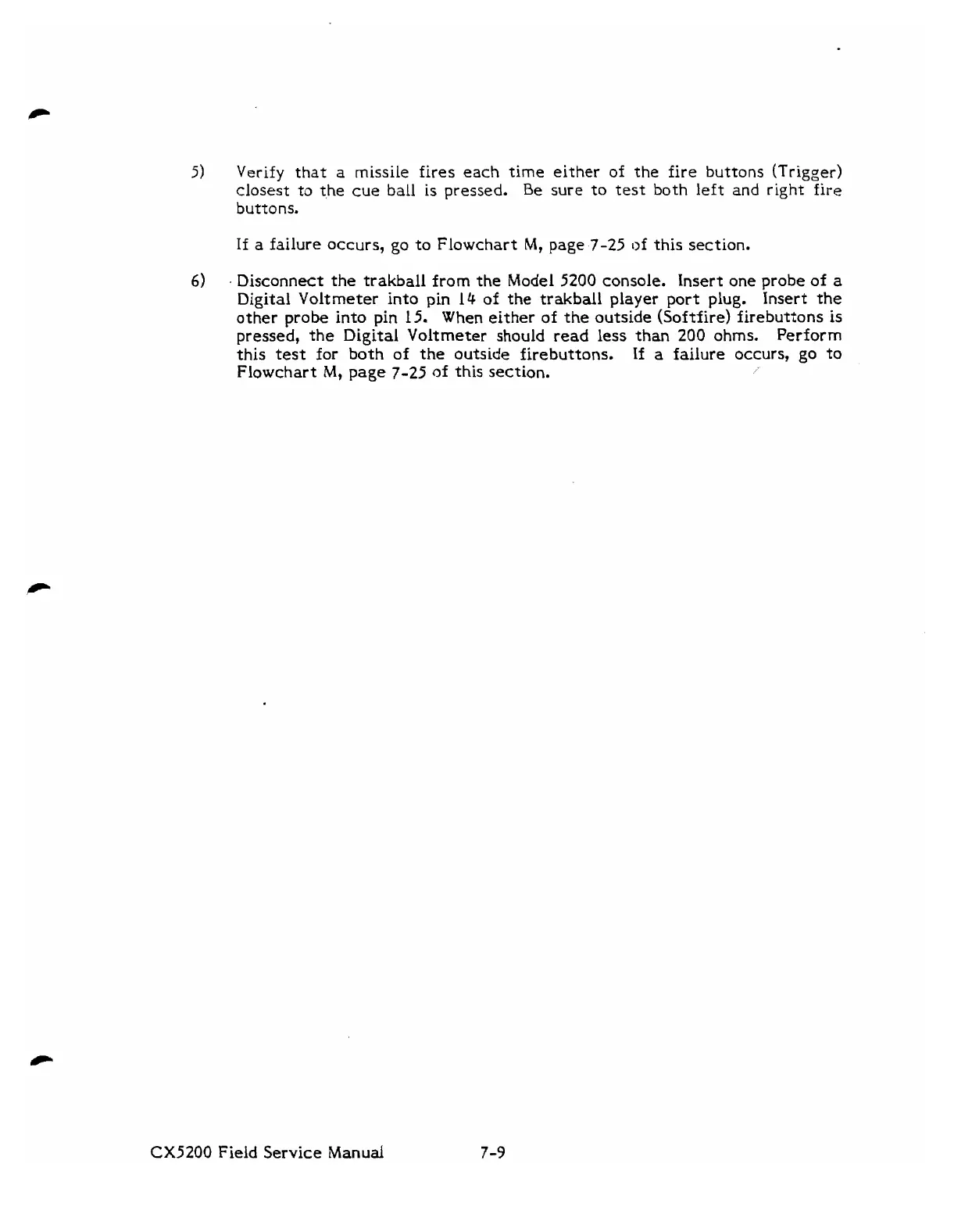

5)
Verify that
a
missile fires each time either
of
the fire buttons (Trigger)
closest to t,he cue ball
is
pressed. Be sure to test
both
left and right fire
buttons.
If
a
failure occurs, go to Flowchart
M,
page7-25
of
this section.
6)
.
Disconnect the trakball from the Model
5200
console. Insert one probe of
a
Digital Voltmeter into pin
14
of
the trakball player port plug. Insert the
other probe into pin
15.
When
either of the outside (Softfire) firebuttons is
pressed, the Digital Voltmeter should read less than
200
ohms. Perform
this test for both of the outside firebuttons. If
a
failure occurs, go to
Flowchart
M,
page 7-25
of
this section.
CX5200
Field
Service
Manual
7-9
