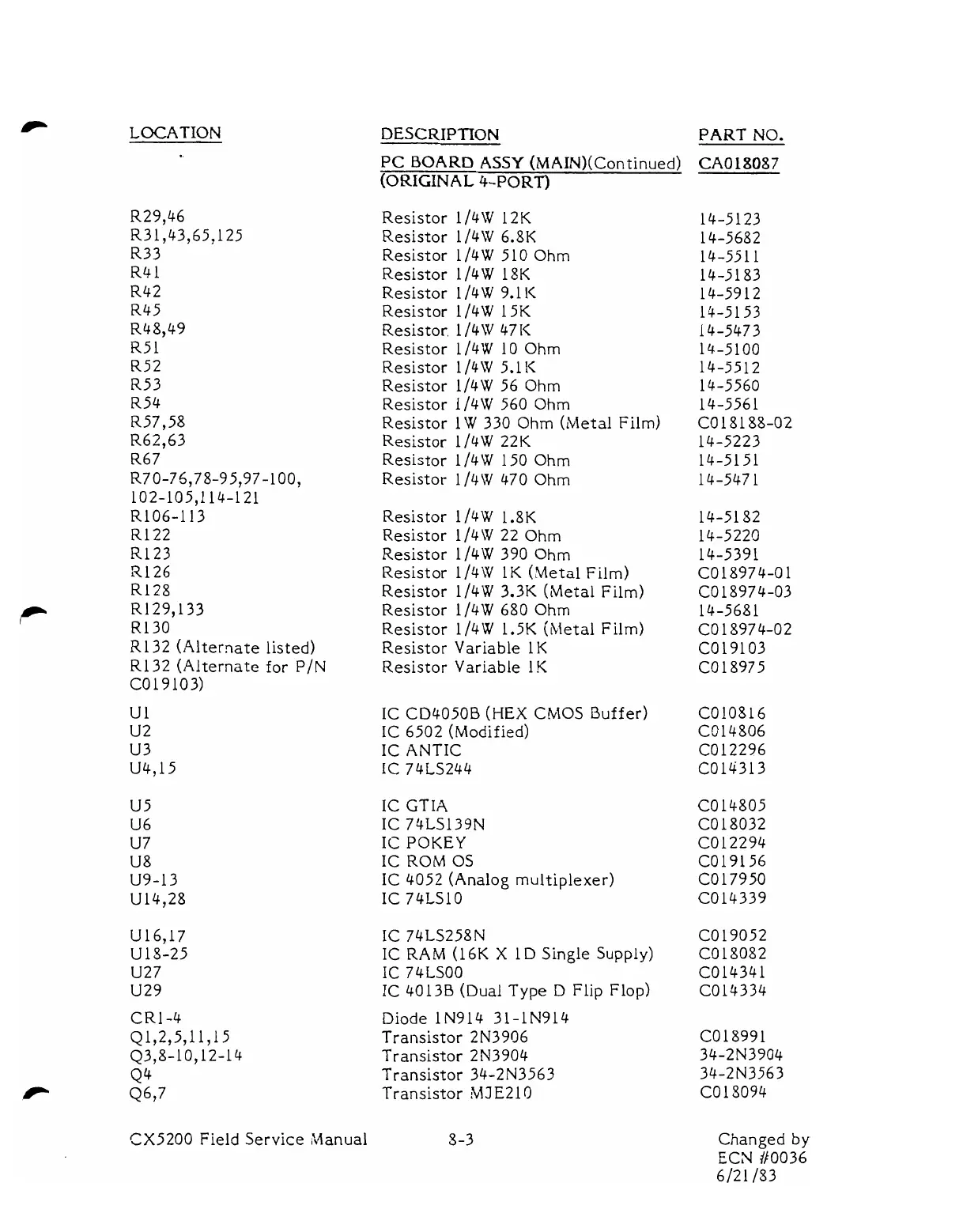

Atari CX - Page 158

LOCATION
R29,46
R31,43,65,125
R33
R4 1
R42
R45
R48,49
R51
R52
R53
R54
R57,58
R62,63
R67
R70-75,78-95,97-100,
102-105,114-121
R106-113
R122
R123
Rl26
R128
Rl29,133
R130
R132 (Alternate listed)
R132 (Alternate for
P/N
C019103)
DESCRIPTION
PC BOARD ASSY (MAIN)(Continued)
(ORIGINAL
4-PORT)
Resistor 1/4W 12K
Resistor 1 /4W 6.8K
Resistor 1/4W 510 Ohm
Resistor 1 /4W 18K
Resistor 1 /4
W 9.1 I<
Resistor 1/4W 15K
Resistor. 1 /4\V
47 t<
Resistor 1/4W 10 Ohm
Resistor 1 /4W 5.1
I<
Resistor 1/4W 56 Ohm
Resistor 1/4W 560
Ohm
Resistor 1 W 330 Ohm (Metal Film)
Resistor 1 /4W 22K
Resistor 1
/4 W 150 Ohm
Resistor 1 /4W 470
Ohm
Resistor 1/4W 1.8K
Resistor 1/4W 22 Ohm
Resistor 1 /4W 390 Ohm
Resistor 1/4W 1
K (Metal Film)
Resistor 1/4W 3.3K (Metal Film)
Resistor 1 /4W 680 Ohm
Resistor 1 /4
W 1.5K (Metal Film)
Resistor Variable
1 K
Resistor Variable 1 K
IC CD4050B
(HEX CMOS Buffer)
IC 6502 (Modified)
IC
ANTIC
IC 74LS244
IC GTIA
IC 74LS139N
IC POKEY
IC ROM OS
IC 4052 (Analog multiplexer)
IC 74LS10
IC 74LS258N
IC RAM (16K X 1 D Single Supply)
IC 74LSOO
IC 401 38 (Dual Type D Flip Flop)
Diode lN914 31-IN914
Transistor 2N3906
Transistor 2N3904
Transistor 34-2N3563
Transistor MJE210
CX5200 Field Service Manual 8-3
PART
NO.
Changed by
ECN 1/0036
6/21 183
