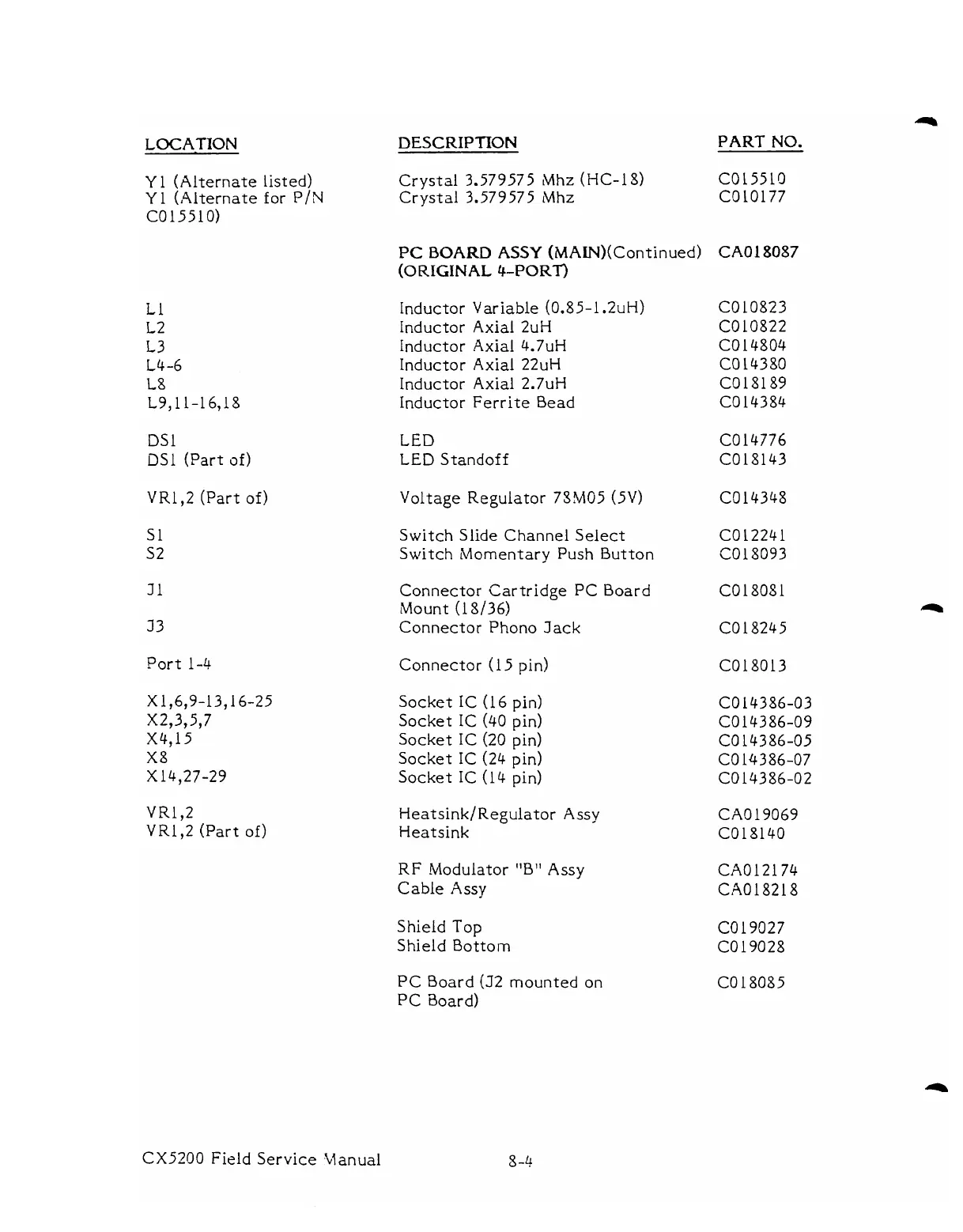

Atari CX - Page 159

Y 1 (Alternate listed)
Y 1 (Alternate for P/N
CO 155 10)
DSl
DS1 (Part
of)
VR1,2 (Part of)
Port
1-4
VR1,Z
VR1,2 (Part of)
CX5200 Field Service Vanual
DESCRIPTION PART NO.
Crystal 3.579575 Mhz (HC-18) C015510
Crystal 3.579575 Mhz C010177
PC BOARD ASSY (MAIN)(Continued) CAOl8O87
(ORIGINAL 4-PORT)
Inductor Variable (0.85-1.2uH)
Inductor Axial 2uH
Inductor Axial 4.7uH
Inductor Axial
22uH
Inductor Axial 2.7uH
Inductor Ferrite Bead
LED
LED Standoff
Voltage Regulator 7SM05 (5V)
Switch Slide Channel Select
Switch Momentary Push Button
Connector Cartridge PC Board
Mount (1 8/36)
Connector Phono Jack
Connector
(1 5 pin)
Socket IC (16 pin)
Socket IC (40 pin)
Socket IC (20 pin)
Socket IC (24 pin)
Socket
IC (14 pin)
HeatsinklRegulator Assy
Heatsink
RF Modulator "B" Assy
Cable Assy
Shield Top
Shield Bottom
PC Board (J2 mounted on
PC i3oard)
