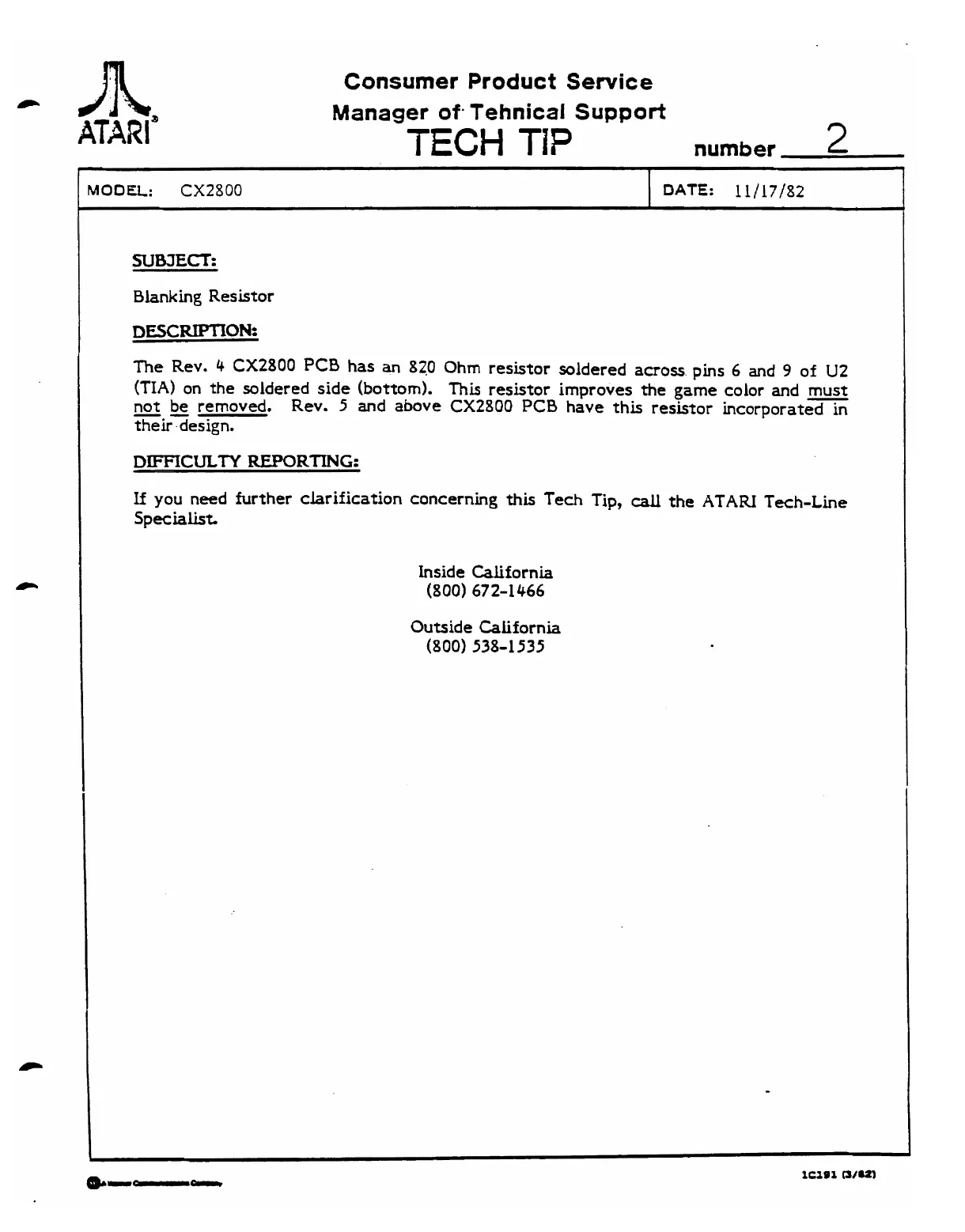

Atari CX - Page 171

Consumer Product Service
Manager of Tehnical Support -
TECH TIP number 2
Blanking Resistor
MODEL: CX2800
The Rev. 4 CX2800 PCB has an 82.0 Ohm resistor soldered across. pins 6 and 9 of U2
(TIA) on the soldered side (bottom). This resistor improves the game color and must
not be removed. Rev. 5 and above CX2800 PCB have this resistor incorporated in
--
their -design.
DATE: 11/17/82
DIFFICULTY REPORTING:
If you need further clarification concerning this Tech Tip, call the ATARI Tech-Line
Specialist.
