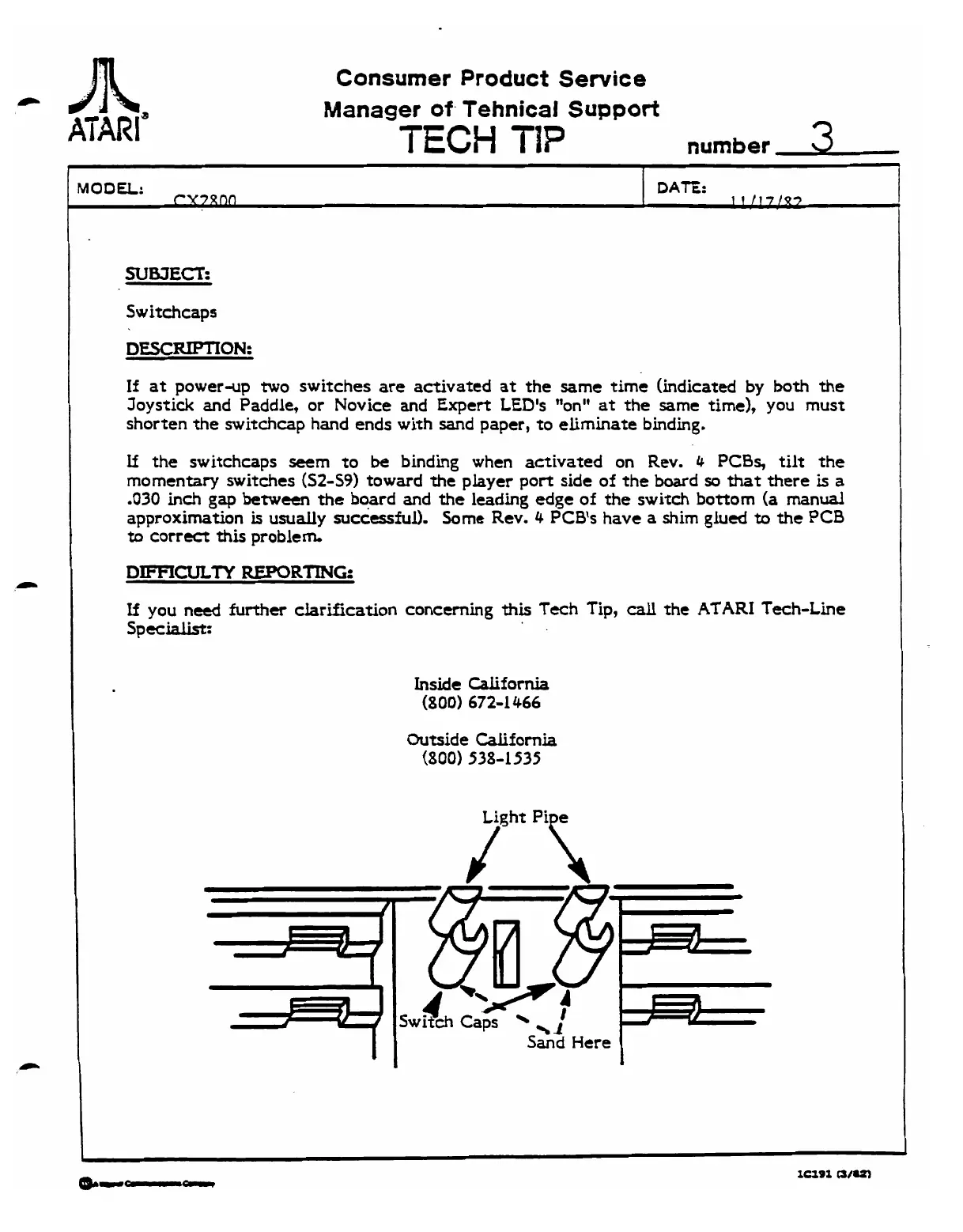

Atari CX User Manual

Consumer Product Service
Manager of. Tehnical Support
- -
TECH TIP
number 3
SUBJECT=
Switchcaps
DESCRIPTION:
If at powerup two switches are activated at the same time (indicated by both the
loystick and Paddle, or Novice and Expert LED'S "on" at the same time), you must
shorten the switchcap
hand ends with sand paper, to eliminate binding.
If the switchcaps seem to be binding when activated on
Rev.
4 PCBs, tilt the
momentary switches 62-59] toward the player port side of the board so that there is a
.030 inch gap between the board and the leading edge of the switch bottom (a manual
approximation is usually successfuD. Some Rev. 4 PCB's have a shim glued to the PCB
to correct this problem
DlFFICULTY REPORTING:
If you need further ciarification concerning this Tech Tip, call the ATARI Tech-Line
Speciah
Inside California
(800) 672-1466
Outside California
(800) 538-1535
Light Pi e
i i
