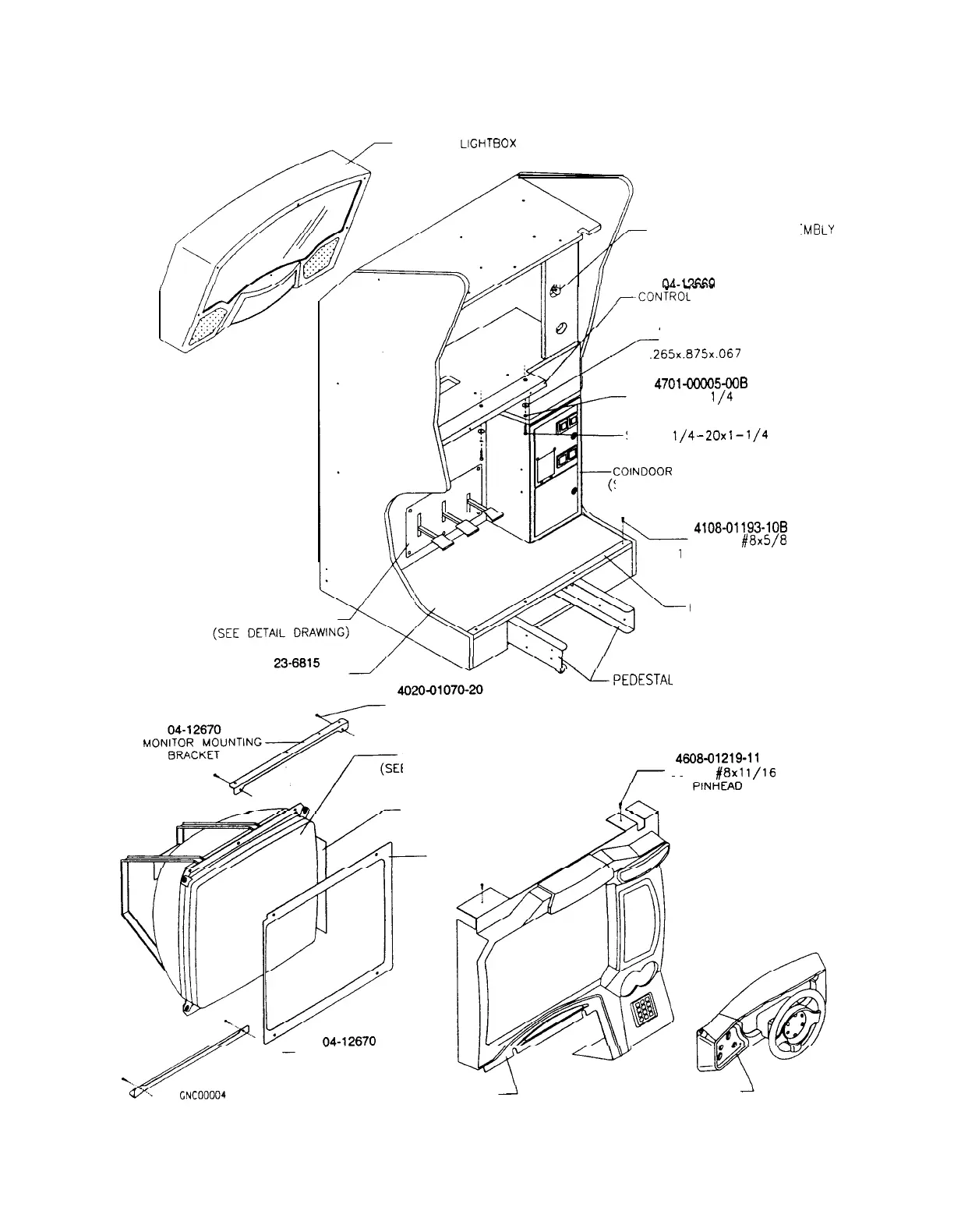

A-23188 MAIN CABINET ASSEMBLY
FRONT VIEW
MARQUEE LIGHTBOX ASSEMBLY
(SEE DETAIL DRAWING)
INSTRUCTION LIGHT ASSE
( SEE D ETAIL DRAWING)
nA-17&W
- - - - -
-CONTROL PANEL BRACKET
4700-00034-00
FLAT WASHER
.265x.075x.067
4701-OoOQ5-006
LOCKWASHER l/4 SPLIT
4020-01070-20
SCREW 1/4-20x1-1/4 HH
COINDOOR ASSEMBLY
SEE DETAIL DRAWING)
4108-01193-108
SCREW #8x5/8
TAMPER RESISTANT
01-15069
BASE TRIM
PEDAL MECHANISM
FLOORBOARD MAT
04-10112
- UPEDESTAL
SUPPORT BEAM
-MBLY
SCREW 1/4x1-1/4 HH
VIDEO MONITOR
4608-01219-11
E DETAIL DRAWING)
SCREW #8x1 l/16
08-8354
LIGHT BARRIER
03-9929
BARRIER PANEL
MONITOR MOUNTING
BRACKET
J/2/99
MONITOR COVER ASSEMBLY
CONTROL PANEL ASSEMBLY
(SEE DETAIL DRAWING)
(SEE DETAIL DRAWING)
3-2
